Multicore Overall Screened Cables
Multicore Overall Screened Cables-Belden Equivalent 8770
Application
Belden Equivalent 8770 multicore overall screened cables have individually insulated cores laid up in an
aluminum/polyester tape with a tinned copper drain wire. Belden Equivalent 8770 cables are suitable for used
as audio, control and instrumentation cables.

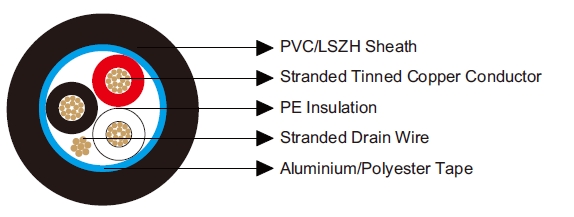

Construction
Conductor:
Tinned copper wire.
Insulation:
PE.
Overall Screen:
Aluminium/Polyester Tape.
Drain Wire:
Tinned copper wire.
Sheath:
PVC/LSZH.
Insulation Colour:
Black, Red, Clear.
Electrical & Mechanical Characteristics
| AWG | 18 | |
|---|---|---|
| Conductor Construction | 16x0.25 | |
| UL Style | 2093 | |
| Maximum Conductor Resistance | Ω/km | 23 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 79 |
| Nominal Capacitance Conductor to Screen | pF/m | 157 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~60 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE118770V | 3 | 0.46 | 0.84 | 6.3 |
| BE118770H | 3 | 0.46 | 0.84 | 6.3 |
