Multipair Overall Screened Cables-Belden Equivalent 8132

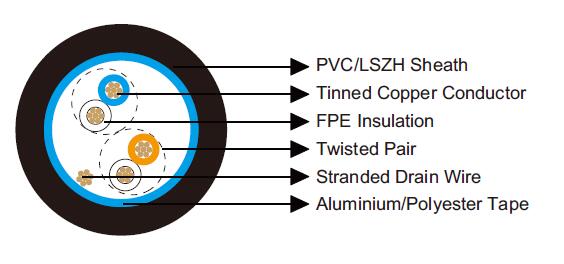

Belden multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper

drain wire. Belden cables are suitable for used as audio, control and instrumentation cables.

Conductor:

Tinned copper wire.

Insulation:

Foam Polyethylene.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC (V type)/LSZH (H type).

Insulation Colour:

White/Blue, White/Orange.

AWG		28
Conductor Construction		7x0.127
Maximum Conductor Resistance	Ω/km	21.6
Voltage Rating	V	30
Nominal Capacitance Conductor to Conductor	pF/m	37
Nominal Capacitance Conductor to Screen	pF/m	67
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~80

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE118132V	2	0.38	0.89	6.0
BE118132H	2	0.38	0.89	6.0
