Belden Equivalent Cables

Multipair Overall Foil & Braid Screened Cables

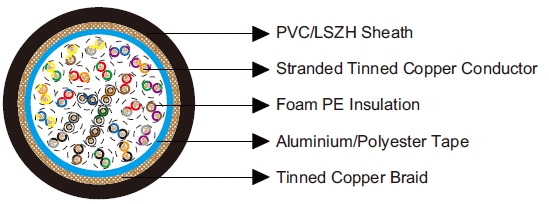

Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 8125

Belden cables have pairs laid up in a foil/braid screen. Belden cables are suitable for EIA RS-232 and EIA RS-422

applications, used as computer cables.

Conductor:

Tinned copper wire.

Insulation:

FoamPE.

Overall Screen1:

Aluminium/Polyester Tape.

Overall Screen2:

Tinned copper braid, 65% coverage.

Sheath:

PVC/LSZH.

Insulation Colour:

White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown &

Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/ Green &

Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange &

Orange/Black, Black/Green & Green/Black, Black/Brown & Brown/Black, Black/Gray & Gray/Black, Yellow/Blue &

Blue/Yellow, Yellow/Orange & Orange/Yellow, Yellow/Green & Green/Yellow, Yellow/Brown & Brown/Yellow,

Yellow/Gray & Gray/Yellow, Purple/Blue & Blue/Purple, Purple/Orange & Orange/Purple, Purple/Green &

Green/Purple, Purple/Brown & Brown/Purple, Purple/Gray & Gray/Purple.

AWG		24
Conductor Construction		7x0.2
UL Style		2919
Maximum Conductor Resistance	Ω/km	85
Voltage Rating	V	30
Nominal Capacitance Conductor to Conductor	pF/m	41
Nominal Capacitance Conductor to Screen	pF/m	72
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-30~80

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE118125V	25	0.4	1.22	17.2
BE118125H	25	0.4	1.22	17.2
