Multicore Unscreened Armoured Cables
Multicore Unscreened Armoured Cables-Belden Equivalent 28271
Application:
Belden multicore unscreened armoured cables are Type MC Metal Clad cables

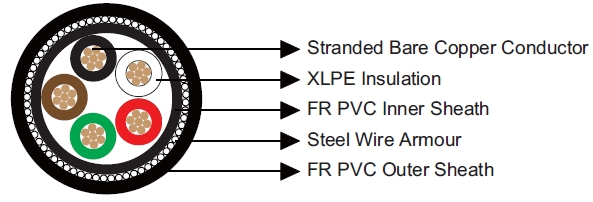

Construction:
Conductor:
Bare copper wire
Insulation:
XLPE
Inner Sheath:
FR PVC
Armour:
Steel wire armour
Outer Sheath:
FR PVC
Insulation Colour:
Black, White, Red, Green, Brown. Other colours are available upon your request.
Electrical & Mechanical Characteristics:
| AWG | 12 | |
|---|---|---|
| Conductor Construction | 7x20 | |
| Nominal Conductor DC Resistance @20℃ | Ω/km | 5 |
| Voltage Rating | V | 600 |
| Bending Radius | 13xOverall Diameter | |
| Operating Temperature | ℃ | -40~90 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE1128271V SWA | 5 | 0.8 | 1.7 | 19.72 |
