H07RN8-F 450/750V Harmonized Rubber Cables
Applications
These cables are designed for use in submersible pumpsand similar applications in water for industrial use up
toa water depth of 10 m and water temperature-rangesup to 40℃, also approved for dry, humid and
wetapplications.
Standards
DIN VDE 0282 Part1 and Part 16
HD 22.1
HD 22.16 S1

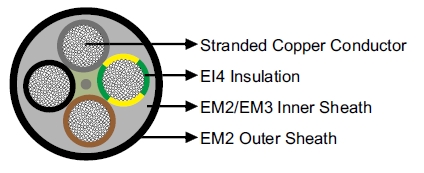

Construction
Conductors: Strandedcopper conductor, class 5 according to DIN VDE 0295/IEC 60228.
Insulation: Rubbertype EI4according to DIN VDE 0282 Part 16.
InnerSheath(for ≥ 10 mm² ormore than 5 cores): Rubbertype EM2/EM3according to DIN VDE 0282 Part 16.
Outer Sheath: Rubber type EM2according to DIN VDE 0282 Part 16.
Dimensions and Weight:
| Number of Cores×Nominal Cross Section | Insulation Thickness | Thickness of Inner Sheath | Thickness of Outer Sheath | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|---|
| No.×mm² | mm | mm | mm | mm | mm | kg/km |
| 1×1.5 | 0.8 | - | 1.4 | 5.7 | 6.7 | 60 |
| 2×1.5 | 0.8 | - | 1.5 | 8.5 | 10.5 | 120 |
| 3G1.5 | 0.8 | - | 1.6 | 9.2 | 11.2 | 170 |
| 4G1.5 | 0.8 | - | 1.7 | 10.2 | 12.5 | 210 |
| 5G1.5 | 0.8 | - | 1.8 | 11.2 | 13.5 | 260 |
| 7G1.5 | 0.8 | 1.0 | 1.6 | 14.0 | 17.0 | 360 |
| 12G1.5 | 0.8 | 1.2 | 1.7 | 17.6 | 20.5 | 515 |
| 19G1.5 | 0.8 | 1.4 | 2.1 | 20.7 | 26.3 | 795 |
| 24G1.5 | 0.8 | 1.4 | 2.1 | 24.3 | 28.5 | 920 |
| 1×2.5 | 0.9 | - | 1.4 | 6.3 | 7.5 | 75 |
| 2×2.5 | 0.9 | - | 1.7 | 10.2 | 12.5 | 170 |
| 3G2.5 | 0.9 | - | 1.8 | 10.9 | 13.0 | 230 |
| 4G2.5 | 0.9 | - | 1.9 | 12.1 | 14.5 | 290 |
| 5G2.5 | 0.9 | - | 2.0 | 13.3 | 16.0 | 360 |
| 7G2.5 | 0.9 | 1.1 | 1.7 | 17.0 | 20.0 | 510 |
| 12G2.5 | 0.9 | 1.2 | 1.9 | 20.6 | 23.5 | 740 |
| 19G2.5 | 0.9 | 1.5 | 2.2 | 24.4 | 30.9 | 1190 |
| 24G2.5 | 0.9 | 1.6 | 2.3 | 28.8 | 33.0 | 1525 |
| 1×4 | 1.0 | - | 1.5 | 7.2 | 8.5 | 100 |
| 2×4 | 1.0 | - | 1.8 | 11.8 | 14.5 | 195 |
| 3G4 | 1.0 | - | 1.9 | 12.7 | 15.0 | 305 |
| 4G4 | 1.0 | - | 2.0 | 14.0 | 17.0 | 400 |
| 5G4 | 1.0 | - | 2.2 | 15.6 | 19.0 | 505 |
| 1×6 | 1.0 | - | 1.6 | 7.9 | 9.5 | 130 |
| 2×6 | 1.0 | - | 2.0 | 13.1 | 16.0 | 285 |
| 3G6 | 1.0 | - | 2.1 | 14.1 | 17.0 | 380 |
| 4G6 | 1.0 | - | 2.3 | 15.7 | 19.0 | 550 |
| 5G6 | 1.0 | - | 2.5 | 17.5 | 21.0 | 660 |
| 1×10 | 1.2 | - | 1.8 | 9.5 | 11.5 | 195 |
| 2×10 | 1.2 | 1.2 | 1.9 | 17.7 | 21.5 | 565 |
| 3G10 | 1.2 | 1.3 | 2.0 | 19.1 | 22.5 | 715 |
| 4G10 | 1.2 | 1.4 | 2.0 | 20.9 | 24.5 | 875 |
| 5G10 | 1.2 | 1.4 | 2.2 | 22.9 | 27.0 | 1095 |
| 1×16 | 1.2 | - | 1.9 | 10.8 | 13.0 | 280 |
| 2×16 | 1.2 | 1.3 | 2.0 | 20.2 | 23.5 | 795 |
| 3G16 | 1.2 | 1.4 | 2.1 | 21.8 | 25.5 | 1040 |
| 4G16 | 1.2 | 1.4 | 2.2 | 23.8 | 28.0 | 1280 |
| 5G16 | 1.2 | 1.5 | 2.4 | 26.4 | 31.0 | 1610 |
| 1×25 | 1.4 | - | 2.0 | 12.7 | 15.0 | 405 |
| 4G25 | 1.4 | 1.6 | 2.2 | 28.9 | 33.0 | 1890 |
| 5G25 | 1.4 | 1.7 | 2.7 | 32.0 | 36.0 | 2335 |
| 1×35 | 1.4 | - | 2.2 | 14.3 | 17.0 | 545 |
| 4G35 | 1.4 | 1.7 | 2.7 | 32.5 | 36.5 | 2505 |
| 5G35 | 1.4 | 1.8 | 2.8 | 35.0 | 39.5 | 2718 |
| 1×50 | 1.6 | - | 2.4 | 16.5 | 19.5 | 730 |
| 4G50 | 1.6 | 1.9 | 2.9 | 37.7 | 42.0 | 3350 |
| 5G50 | 1.6 | 2.1 | 3.1 | 41.0 | 46.0 | 3804 |
| 1×70 | 1.6 | - | 2.6 | 18.6 | 22.0 | 955 |
| 4G70 | 1.6 | 2.0 | 3.2 | 42.7 | 47.0 | 4785 |
| 1×95 | 1.8 | - | 2.8 | 20.8 | 24.0 | 1135 |
| 4G95 | 1.8 | 2.3 | 3.6 | 48.4 | 54.0 | 6090 |
| 1×120 | 1.8 | - | 3.0 | 22.8 | 26.5 | 1560 |
| 4G120 | 1.8 | 2.4 | 3.6 | 53.0 | 59.0 | 7550 |
| 5G120 | 1.8 | 2.8 | 4.0 | 59.0 | 65.0 | 8290 |
| 1×150 | 2.0 | - | 3.2 | 25.2 | 29.0 | 1925 |
| 4G150 | 2.0 | 2.6 | 3.9 | 58.0 | 64.0 | 8495 |
| 1×185 | 2.2 | - | 3.4 | 27.6 | 31.5 | 2230 |
| 4G185 | 2.2 | 2.8 | 4.2 | 64.0 | 71.0 | 9850 |
| 1×240 | 2.4 | - | 3.5 | 30.6 | 35.0 | 2945 |
| 1×300 | 2.6 | - | 3.6 | 33.5 | 38.0 | 3495 |
| 1×630 | 3.0 | - | 4.1 | 45.5 | 51.0 | 7020 |
