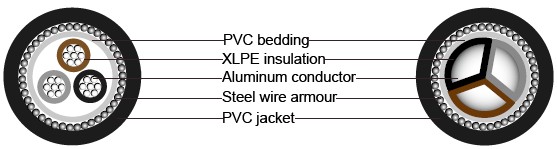

BS 5467 Armoured Power Cables, 1900/3300V

Three-core 1900/3300 V cables with solid aluminum conductors

Application

BS 5467 Cables are used for power and control circuits,BS 5467 Cables can offer excellent protection through

the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside

buildings or for direct burial in the ground.

Construction

Conductor :Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation Colour Code :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

1 Core : Brown

3 Cores: Brown, Black, Grey

Bedding Armour Outer Sheath :extruded layer of polymeric material

Technical Information

Voltage rating 1900/3300V

Temperature rating 0°C to +90°C

Bending radius 8 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

BS 5467 Armoured Power Cables, 1900/3300V

Nominal Cross-sectional Area Nominal Insulation thickness Nominal beddingthickness Nominal Steel Wire Armor dia. Nominal Sheath thickness Approx.Overall Diameter AprroxWeight
mm² mm mm mm mm mm kg/km
3x16 2 1 1.6 1.8 27.9 1540
3x25 2 1 1.6 1.8 30.4 1780
3x35 2 1 1.6 1.9 32.7 2040
3x35* 2 1 1.6 1.9 29.7 2040
3x50* 2 1.2 2 2 33 2760
3x70* 2 1.2 2 2.1 36 3210
3x95* 2 1.2 2 2.2 39.1 3625
3x120* 2 1.4 2.5 2.3 43.1 4820
3x150* 2 1.4 2.5 2.4 45.6 5410
3x185* 2 1.4 2.5 2.5 48.7 6070
3x240* 2 1.6 2.5 2.6 53.2 7150
3x300* 2 1.6 2.5 2.7 57.2 8120
