Industrial Cables
American French German Harmonized Italian JIS Spanish


Industrial Cables-British Standard

6181B/6182B/6183B/6184B/6185B to BS 7211



Application and Description

6181B/6182B/6183B/6184B/6185B to BS 7211 cables are designed for fixed wiring purposes in domestic and

industrial power/lighting applications. They can be installed in trunking or conduit, or may be surface mounted

when used for earthing. They are suitable for use in areas (such as public and government buildings) where

smoke and toxic fumes may cause a threat to life and equipment. When mechanical protection is required, they

can be embedded in concrete

Cable Construction

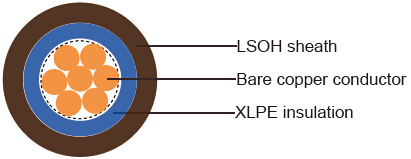

6181B/6182B/6183B/6184B/6185B to BS 72116181B/6182B/6183B/6184B/6185B to BS 7211

Core Identification

2-core: brown and blue;

3-core: brown, black and grey;

4-core: blue, brown, black and grey;

5-core: greenlyellow, blue, brown, black and grey

Technical Characteristics

Working voltage: 450/750v

Operating temperature: -15º C to +90º C

Insulation resistance: 10 MOxkm

Halogen free acc. to EN 50267-2-1 / IEC 60754-1

Smoke density acc. to EN 50268-2 / IEC 61034-2

Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2

Flame retardancy acc. to EN 50265-2-1, IEC 60332-1

Cable Parameter

AWG
(No of
Strands/
Strand
Diameter)
No. of Cores x Nominal Cross Sectional Area
#xmm²
Nominal Thickness of Insulation
mm
Nominal Thickness of inner Covering
mm
Nominal Thickness of Sheath
mm
Nominal Overall Diameter lower limit
mm
Nominal Overall Diameter upper limit
mm
6181B
18(solid) 1x1.0 0.7 - 0.8 3.9 4.8
18(7/26) 1x1.0 0.7 - 0.8 4 4.9
16(solid) 1x1.5 0.7 - 0.8 4.2 5
16(7/24) 1x1.5 0.7 - 0.8 4.3 5.2
14(solid) 1x2.5 0.7 - 0.8 4.6 5.5
14(7/22) 1x2.5 0.7 - 0.8 4.7 5.6
12(solid) 1x4 0.7 - 0.9 5.2 6.3
12(7/20) 1x4 0.7 - 0.9 5.3 6.4
10(solid) 1x6 0.7 - 0.9 5.7 6.8
10(7/18) 1x6 0.7 - 0.9 5.9 7.1
8(7/16) 1x10 0.7 - 0.9 6.7 8.1
6(7/14) 1x16 0.7 - 0.9 7.6 9.2
4(7/12) 1x25 0.9 - 1 9.7 11.4
2(7/10) 1x35 0.9 - 1.1 10.6 12.8
6182B
18(solid) 2x1.0 0.7 0.4 1.2 7.1 9.5
18(7/26) 2x1.0 0.7 0.4 1.2 7.3 9.7
16(solid) 2x1.5 0.7 0.4 1.2 7.6 10.1
16(7/24) 2x1.5 0.7 0.4 1.2 7.8 10.3
14(solid) 2x2.5 0.7 0.4 1.2 8.4 11
14(7/22) 2x2.5 0.7 0.4 1.2 8.5 11.3
12(solid) 2x4 0.7 0.4 1.2 9.2 12.1
12(7/20) 2x4 0.7 0.4 1.2 9.5 12.4
10(solid) 2x6 0.7 0.4 1.2 10.2 13.2
10(7/18) 2x6 0.7 0.4 1.2 10.6 13.7
8(solid) 2x10 0.7 0.4 1.4 12.1 16
8(7/16) 2x10 0.7 0.6 1.4 12.7 16.7
6(7/14) 2x16 0.7 0.6 1.4 14.4 18.8
4(7/12) 2x25 0.9 0.8 1.4 17.7 23.2
2(7/10) 2x35 0.9 0.8 1.6 20 26
AWG
(No of
Strands/
Strand
Diameter)
No. of Cores x Nominal Cross Sectional Area
#xmm²
Nominal Thickness of Insulation
mm
Nominal Thickness of inner Covering
mm
Nominal Thickness of Sheath
mm
Nominal Overall Diameter lower limit
mm
Nominal Overall Diameter upper limit
mm
6183B
18(solid) 3x1.0 0.7 0.4 1.2 7.5 10.0
18(7/26) 3x1.0 0.7 0.4 1.2 7.7 10.2
16(solid) 3x1.5 0.7 0.4 1.2 8.0 10.6
16(7/24) 3x1.5 0.7 0.4 1.2 8.2 10.9
14(solid) 3x2.5 0.7 0.4 1.2 8.8 11.6
14(7/22) 3x2.5 0.7 0.4 1.2 9.0 11.9
12(solid) 3x4 0.7 0.4 1.2 9.8 12.7
12(7/20) 3x4 0.7 0.4 1.2 10.1 13.1
10(solid) 3x6 0.7 0.4 1.2 11.2 14.4
10(7/18) 3x6 0.7 0.4 1.4 11.6 15.0
8(solid) 3x10 0.7 0.6 1.4 12.8 16.9
8(7/16) 3x10 0.7 0.6 1.4 13.5 17.7
6(7/14) 3x16 0.7 0.6 1.4 15.3 19.9
4(7/12) 3x25 0.9 0.8 1.4 18.9 24.6
2(7/10) 3x35 0.9 0.8 1.6 2 1.3 27.6
6184B
18(solid) 4x1.0 0.7 0.4 1.2 8.1 10.7
18(7/26) 4x1.0 0.7 0.4 1.2 8.3 11.0
16(solid) 4x1.5 0.7 0.4 1.2 8.7 11.4
16(7/24) 4x1.5 0.7 0.4 1.2 8.9 11.7
14(solid) 4x2.5 0.7 0.4 1.2 9.6 12.6
14(7/22) 4x2.5 0.7 0.4 1.2 9.9 12.8
12(solid) 4x4 0.7 0.4 1.2 10.7 13.8
12(7/20) 4x4 0.7 0.4 1.2 11.0 14.2
10(solid) 4x6 0.7 0.4 1.4 12.2 16.1
10(7/18) 4x6 0.7 0.6 1.4 12.7 16.7
8(solid) 4x10 0.7 0.6 1.4 14.1 18.4
8(7/16) 4x10 0.7 0.6 1.4 14.8 19.2
6(7/14) 4x16 0.7 0.6 1.4 16.9 21.8
4(7/12) 4x25 0.9 0.8 1.6 21.2 27.5
2(7/10) 4x35 0.9 1.0 1.6 23.5 30.7
AWG
(No of
Strands/
Strand
Diameter)
No. of Cores x Nominal Cross Sectional Area
#xmm²
Nominal Thickness of Insulation
mm
Nominal Thickness of inner Covering
mm
Nominal Thickness of Sheath
mm
Nominal Overall Diameter lower limit
mm
Nominal Overall Diameter upper limit
mm
6185B
18(solid) 5x1.0 0.7 0.4 1.2 8.8 11.5
18(7/26) 5x1.0 0.7 0.4 1.2 9.0 11.9
16(solid) 5x1.5 0.7 0.4 1.2 9.4 12.3
16(7/24) 5x1.5 0.7 0.4 1.2 9.7 12.6
14(solid) 5x2.5 0.7 0.4 1.2 10.5 13.6
14(7/22) 5x2.5 0.7 0.4 1.2 10.7 13.9
12(solid) 5x4 0.7 0.4 1.4 12.0 15.9
12(7/20) 5x4 0.7 0.6 1.4 12.4 16.4
10(solid) 5x6 0.7 0.6 1.4 13.3 17.5
10(7/18) 5x6 0.7 0.6 1.4 13.8 18.1
8(solid) 5x10 0.7 0.6 1.4 15.4 20.0
8(7/16) 5x10 0.7 0.6 1.4 16.2 20.9
6(7/14) 5x16 0.7 0.8 1.4 18.5 24.2
4(7/12) 5x25 0.9 1.0 1.6 23.3 30.5
2(7/10) 5x35 0.9 1.0 1.6 25.9 33.6
