N2XH/ N2XCH



Application and Description

N2XH power cables with enhanced resistance to fire are used mostly in areas where harm to human life or

material must be prevented in case of fire such as industrial and public buildings, hotels, subway systems,

hospitals etc. These cables are suitable for dry and wet environments as well as for outer application but are

not suitable for direct burial into earth or water.

Standard and Approval

VDE 0276 part 604, VDE 0482-266-2, DIN EN 60332-3 / EN50266-2

Cable Construction

N2XH/ N2XCHN2XH/ N2XCH

Solid or stranded plain copper conductor

to DIN VDE 0295 cl. 1, cl. 2, BS 6360 cl. 1, cl. 2 and IEC 60228 cl 1, cl. 2

XLPE insulation type 2XI1, to HD 604 S1

Color coded to DIN VDE 0293-308

Green-yellow ground conductor (3 conductors and above)

Special LSOH filler

For N2XCH version with concentric conductor:

plain round copper wires and one or two transverse counter helix of copper tapes

Thermoplastic polyolefin compound outer jacket type HM4, to HD 604 S1

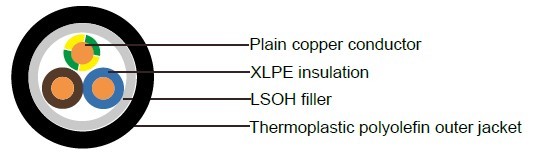

N2XH

Technical Characteristics

Working voltage: 600/1000 volts

Test voltage: 4000 volts

Minimum bending radius: 12 x Ø

Flexing temperature: +5º C to +50º C

Fixed installation temperature: - 40º C to +90º C

Short circuit temperature: +250º C

Flame retardant: VDE 0482 part 266-2, DIN EN 50266-2 / IEC 60332-3

Low corrosiveness of combustion gases to DIN VDE 0482 part 267/ EN 50267-2-2/IEC 60754-2

Halogen-free to DIN VDE 0482 part 267 /EN 50267-2-1/IEC 60754-1

Smoke density to DIN VDE 0482 part 268/HD 606/BS 7622 PT1,PT2/EN 50268-1,-2/IEC 61034-1,-2

Insulation resistance: >20 MΩ x km

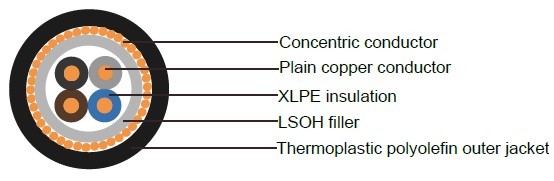

N2XCH

Cable Parameter

N2XH

AWG NO. OF CORESX
NOMINAL CROSS
SECTIONAL AREA
# X MM²
CONDUCTOR
TYPE
INSULATIONTHICKNESS MM NOMINAL
OVERALL DIAMETER MM
COPPER WEIGHT KG / KM CABLE WEIGHT KG / KM
12 1x4 re 0.7 7.5 38 140
10 1x6 re 0.7 8.0 58 160
8 1x10 re 0.7 8.8 96 210
6 1x16 rm 0.7 9.7 154 270
4 1x25 rm 0.9 10.6 240 380
2 1x35 rm 0.9 12.7 336 490
1 1x50 rm 1.0 14.1 480 620
2/0 1x70 rm 1.1 16.0 672 830
3/0 1x95 rm 1.1 17.9 912 1200
4/0 1x120 rm 1.2 19.5 1152 1500
300mcm 1x150 rm 1.4 21.6 1440 1700
350mcm 1x185 rm 1.6 23.8 1776 2200
500mcm 1x240 rm 1.7 25.3 2304 2750
750mcm 1x300 rm 1.8 29.0 2880 3300
- 1x400 rm 2.0 37.0 3840 4420
- 1x500 rm 2.2 40.0 4800 5460
16 2x1.5 re 0.7 11.1 29 180
14 2x2.5 re 0.7 11.9 48 210
12 2x4 re 0.7 12.7 77 270
10 2x6 re 0.7 13.7 115 340
8 2x10 re 0.7 15.3 192 450
6 2x16 rm 0.7 17.3 307 600
4 2x25 rm 0.9 21.1 480 980
16 3x1.5 re 0.7 11.5 43 179
14 3x2.5 re 0.7 12.4 72 225
12 3x4 re 0.7 13.3 115 291
10 3x6 re 0.7 14.4 173 371
8 3x10 re 0.7 16.1 288 523
6 3x16 rm 0.7 18.2 461 773
4 3x25 rm 0.9 22.3 720 1200
2 3x35 rm 0.9 24.9 1008 1600
1 3x50 rm 1.0 26.0 1440 1800
16 4x1.5 re 0.7 12.2 58 208
14 4x2.5 re 0.7 13.2 96 265
12 4x4 re 0.7 14.2 154 352
10 4x6 re 0.7 15.4 230 454
8 4x10 re 0.7 17.5 384 647
6 4x16 rm 0.7 19.7 614 964
4 4x25 rm 0.9 24.5 960 1446
2 4x35 rm 0.9 27.1 1344 1906
1 4x50 sm 1.0 29.6 1920 2530
2/0 4x70 sm 1.1 32.9 2688 3418
3/0 4x95 sm 1.1 37.5 3648 4574
4/0 4x120 sm 1.2 41.5 4608 5300
300mcm 4x150 sm 1.4 46.3 5760 6350
350mcm 4x185 sm 1.6 49.0 7104 7800
500mcm 4x240 sm 1.7 54.0 9216 10300
16 5x1.5 re 0.7 13.1 72 243
14 5x2.5 re 0.7 14.2 120 310
12 5x4 re 0.7 15.3 192 413
10 5x6 re 0.7 16.6 288 536
8 5x10 re 0.7 19.0 480 776
6 5x16 rm 0.7 21.4 768 1165
4 5x25 rm 0.9 28.0 1200 1766
16 7x1.5 re 0.7 12.7 101 206
14 7x2.5 re 0.7 13.5 168 287
12 7x4 re 0.7 17.0 269 530
16 10x1.5 re 0.7 13.8 144 287
14 10x2.5 re 0.7 15.9 240 472
16 12x1.5 re 0.7 15.2 173 328
14 12x2.5 re 0.7 17.3 288 472
12 12x4 re 0.7 21.0 461 820
16 14x1.5 re 0.7 15.7 202 383
14 14x2.5 re 0.7 17.6 336 670
16 19x1.5 re 0.7 17.3 274 484
14 19x2.5 re 0.7 21.3 456 840
16 24x1.5 re 0.7 20.2 346 603
14 24x2.5 re 0.7 24.6 576 1050
16 30x1.5 re 0.7 22.6 432 730
14 30x2.5 re 0.7 24.5 720 1230
16 40x1.5 re 0.7 26.2 576 1200

N2XCH

AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA
# X MM²
CONDUCTOR
TYPE
CONCENTRIC
CONDUCTOR CROSS SECTION MM²
NOMINAL OVERALL DIAMETER MM COPPER WEIGHT KG / KM CABLE WEIGHT KG / KM
16 1x1.5 re 1.5 7.9 27 98
14 1x2.5 re 2.5 8.5 47 122
12 1x4.0 re 4 9.4 74 163
10 1x6.0 re 6 9.9 108 203
8 1x10 re 10 11.3 182 286
6 1x16 re 16 12.8 297 410
4 1x25 rm 25 12.9 465 606
2 1x35 rm 35 16.4 654 807
16 2x1.5 re 1.5 13 45 230
14 2x2.5 re 2.5 13.7 68 273
12 2x4.0 re 4 15.9 110 375
10 2x6.0 re 6 17.1 164 458
8 2x10 re 10 19.1 274 619
6 2x16 re 16 21 435 841
4 2x25 rm 25 25.1 703 1276
2 2x35 rm 35 27.8 980 1642
1 2x50 rm 50 31.5 1343 2193
16 3x1.5 re 1.5 13.5 56 252
14 3x2.5 re 2.5 14.3 90 305
12 3x4.0 re 4 16.6 147 425
10 3x6.0 re 6 17.7 243 528
8 3x10 re 10 20 365 724
6 3x16 re 16 22.1 580 999
4 3x25 rm 16 27.8 855 1440
4 3x25 rm 25 26.6 938 1524
2 3x35 rm 16 29.1 1127 1813
2 3x35 rm 35 29.4 1317 1987
1 3x50 rm 25 32.7 1581 2415
2 3x35 sm 35 27.1 1339 1644
2 3x35 sm 16 26.6 1161 1627
1 3x50 sm 25 29.6 1593 2174
1 3x50 sm 50 30.6 1819 2260
2/0 3x70 sm 35 33.6 2265 2932
2/0 3x70 sm 70 34.1 2584 3097
3/0 3x95 sm 50 38.2 3151 4004
3/0 3x95 sm 95 39.4 3692 4336
4/0 3x120 sm 70 38.3 4038 4925
4/0 3x120 sm 120 41.6 4443 5124
300 3x150 sm 70 44.7 4827 5890
300 3x150 sm 150 45.8 5543 6352
350 3x185 sm 95 49 6051 7329
400 3x240 sm 120 54.5 7881 9399
16 4x1.5 re 1.5 14.3 70 284
14 4x2.5 re 2.5 16.3 136 382
12 4x4.0 re 4 17.8 183 494
10 4x6.0 re 6 19 297 620
8 4x10 re 10 21.5 457 860
6 4x16 re 16 23.8 725 1196
4 4x25 rm 16 29 1090 1764
2 4x35 rm 16 32 1456 2246
1 4x50 rm 25 36.4 1998 3024
2 4x35 sm 16 29.8 1495 2060
1 4x50 sm 25 33.1 2044 2730
2/0 4x70 sm 35 38.4 2911 3758
3/0 4x95 sm 50 42.6 4041 5054
4/0 4x120 sm 70 43.1 5162 6246
300 4x150 sm 70 50.7 6214 7548
350 4x185 sm 95 55.3 7826 9374
400 4x240 sm 120 62.3 10150 12124
16 7X1.5 re 2.5 14.5 132.0 320.0
14 7X2.5 re 2.5 15.1 200.0 400.0
12 7X4 re 4 18.1 316.0 580.0
16 10X1.5 re 2.5 17.2 177.0 420.0
14 10X2.5 re 4 18.9 287.0 550.0
16 12X1.5 re 2.5 18.4 204.0 460.0
14 12X2.5 re 4 19.2 335.0 610.0
12 12X4 re 6 22.6 528.0 910.0
16 16X1.5 re 4 20.0 275.0 686.0
14 16X2.5 re 6 20.9 450.0 805.0
16 21X1.5 re 6 22.6 370.0 766.0
14 21X2.5 re 6 25.2 572.0 1015.0
16 24X1.5 re 6 23.2 412.0 800.0
14 24X2.5 re 10 26.1 695.0 1100.0
16 30X1.5 re 6 24.3 500.0 930.0
14 30X2.5 re 10 28.0 842.0 1290.0
