High Temperature Cables

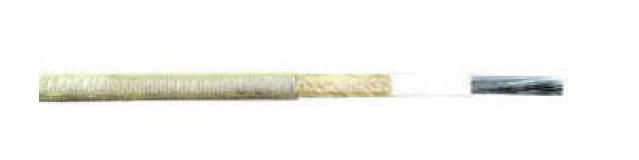

P-Temp-500
Product application:
This high performance cable is designed to operate under more arduous high temperature conditions, providing
moisture resistance, toughness, flexibility and a continous conductor operating temperature of 450ºC.
Product characteristic:
Construction:
Fine nickel plated copper wire strands
Glass fiber woven mica tape
Varnished color glass fiber woven mica tape for insulation
Mica tape, impregnated and varnished glass fibre braid for outer sheath
Standard colour is white, other colours to special order
Technical:
Working voltage :300/500V
Temperature range: Continious 500°C
Core concentricity: ≥70%
Properties:
Good flexibility installation
Service temperature upto 500°C
Good resistance to high temperature, oil and chemical
Good resistance to abrasion or mechanical damage
Product specification:
AWG |
Strand x Diameter mm |
Conductor Cross Section |
Nominal |
Nominal |
|---|---|---|---|---|
20 |
7 × 0.3 |
0.5 |
0.5 |
2.3 ± 0.3 |
18 |
11 × 0.3 |
0.75 |
0.5 |
2.5 ± 0.3 |
17 |
14 × 0.3 |
1 |
0.5 |
2.6 ± 0.3 |
16 |
21 × 0.3 |
1.5 |
0.5 |
2.9 ± 0.3 |
14 |
35 × 0.3 |
2.5 |
0.6 |
3.6 ± 0.5 |
12 |
56 × 0.3 |
4 |
0.8 |
4.7 ± 0.5 |
10 |
84 × 0.3 |
6 |
0.8 |
5.5 ± 0.5 |
8 |
84 × 0.4 |
10 |
0.8 |
6.6 ± 0.5 |
6 |
228 × 0.3 |
16 |
0.8 |
7.8 ± 0.5 |
6 |
126 × 0.4 |
16 |
0.8 |
7.8 ± 0.5 |
4 |
196 × 0.4 |
25 |
0.8 |
9.5 ± 0.5 |
4 |
361 × 0.3 |
25 |
0.8 |
9.5 ± 0.5 |
2 |
494 × 0.3 |
35 |
1 |
11.2 ± 1.0 |
1 |
396 × 0.4 |
50 |
1.2 |
13.2 ± 1.0 |
1 |
703 × 0.3 |
50 |
1.2 |
13.2 ± 1.0 |
2/0 |
551 × 0.4 |
70 |
1.2 |
15.4 ± 1.0 |
2/0 |
988 × 0.3 |
70 |
1.2 |
15.4 ± 1.0 |
3/0 |
760 × 0.4 |
95 |
1.2 |
17.4 ± 1.0 |
