FEP Insulated PFA Sheathed High Temperature High Voltage Cable 7.5KV
Product application:
Equipment wire for high performance aerospace applications. These cables are used in severe environmental
conditions, especially under high temperature.
Product characteristic:

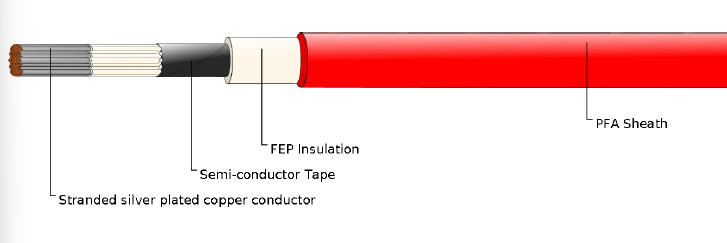

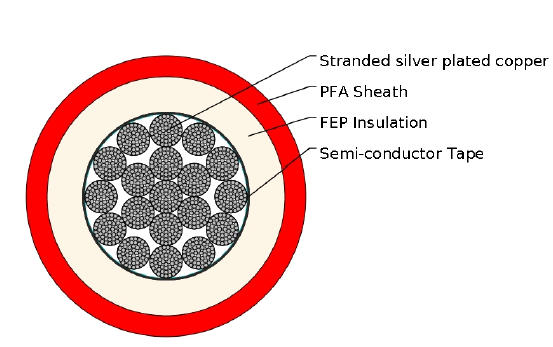

Construction:
Stranded silver plated copper conductor
Semi-conductor Tape
FEP Insulation with White Color
PFA Sheath with Red Color
Physical Properties:
Temperature Rating: -60°C to +250°C
Minimum Bending Radius: 6 x overall diameter
Electrical Properties:
Conductor Resistance DC (Ω/KM): ≤0.384
Voltage Working: 7.5KV
Test Voltage (KV/1min): 12KV
Product specification:
Cond. |
Approx. |
Semi-conductor |
Insulation Thickness |
Sheath Thickness |
Approx. Outer Diameter (mm) |
|---|---|---|---|---|---|
1026/0.23 |
9.8 |
0.15 |
2.0 |
1.2 |
16.5 |
