High Temperature Cables
High Temperature Mica Wire
750°C 600V High Temperature Wire
Product application:
Engineered for the most extreme thermal environments where conventional wires fail. Essential for metallurgical
processing, aluminum smelting, glass tank furnace wiring, cement plant preheaters, and incinerator
instrumentation. Also deployed in aerospace engine test cells, nuclear reactor containment zones, and
emergency safety circuits that must maintain integrity during catastrophic heat events. The pure nickel conductor
ensures stable electrical performance at temperatures that would degrade copper-based alternatives.

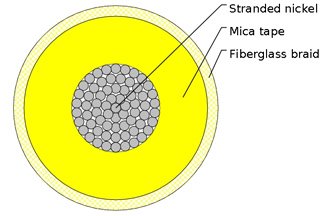

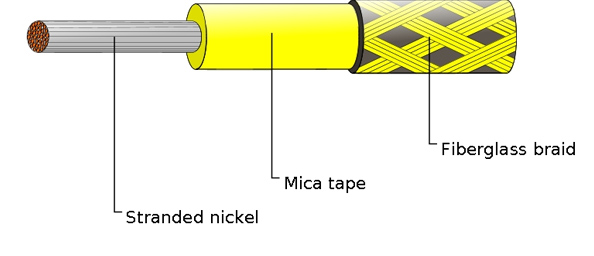

Construction:
Construction:
Conductor |
Stranded nickel |
|---|---|
Insulation |
Mica tape |
Jacket |
Fiberglass braid with hightemperature finish |
Rated Voltage |
600 V |
Rated Temperature |
750°C |
Color |
Tan, Red, White, Yellow, Green, Brown, Black, Blue |
Product specification:
Size |
Conductor Structure |
Insulation |
Jacket |
Approx. O.D. |
|---|---|---|---|---|
mm² |
|
mm |
mm |
mm |
18 |
17/0.25 |
1.13 |
0.25 |
4.0 |
16 |
27/0.25 |
1.13 |
0.25 |
4.3 |
14 |
42/0.25 |
1.13 |
0.25 |
4.6 |
12 |
67/0.25 |
1.13 |
0.25 |
5.2 |
10 |
106/0.25 |
1.13 |
0.25 |
6.0 |
8 |
168/0.25 |
1.35 |
0.25 |
7.3 |
