High Temperature Mica Wire
750°C 300V High Temperature Wire
Product application:
ptimized for low-voltage signal and instrumentation circuits in extreme-heat zones. Used for thermocouple
extension wiring, sensor connections, and control circuits inside furnaces, smelters, and incinerators where a
300V rating is sufficient but 750°C endurance is mandatory. Ideal for glass furnace instrumentation, steel mill
sensor arrays, ceramic kiln monitoring, and aerospace ground-test equipment where compact high-temperature
wiring is required for reliable data transmission under sustained extreme thermal loads.

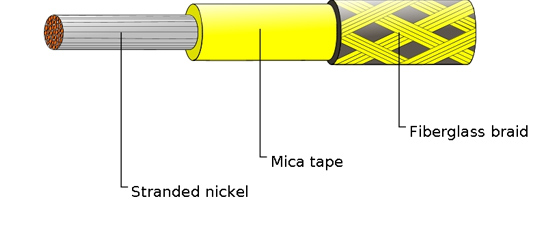

Construction:
Construction:
| Conductor | Stranded nickel |
|---|---|
Insulation |
Mica tape |
Jacket |
Fiberglass braid with hightemperature finish |
Rated Voltage |
300 V |
Rated Temperature |
750°C |
Color |
Tan, Red, White, Yellow, Green, Brown, Black, Blue |
Product specification:
| Size | Conductor Structure |
Insulation |
Jacket |
Approx. O.D. |
|---|---|---|---|---|
mm² |
|
mm |
mm |
mm |
18 |
17/0.25 |
0.64 |
0.25 |
3.0 |
16 |
27/0.25 |
0.64 |
0.25 |
3.3 |
14 |
42/0.25 |
0.64 |
0.25 |
3.7 |
12 |
67/0.25 |
0.64 |
0.25 |
4.2 |
10 |
106/0.25 |
0.76 |
0.25 |
5.3 |
8 |
168/0.25 |
0.76 |
0.25 |
6.1 |
