High Temperature Cables

High Temperature Mica Wire

Designed for low-voltage instrumentation and control circuits in high-temperature zones. Commonly applied

in appliance internal wiring, heating element connections, thermal sensor leads, and signal circuits within

industrial furnaces and kilns. Well-suited for equipment where a 300V rating is sufficient but 450°C thermal

endurance is essential — including laboratory furnaces, food processing ovens, textile machinery, and packaging

equipment operating at elevated temperatures.

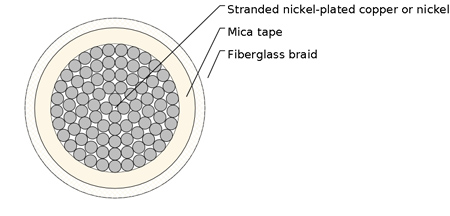

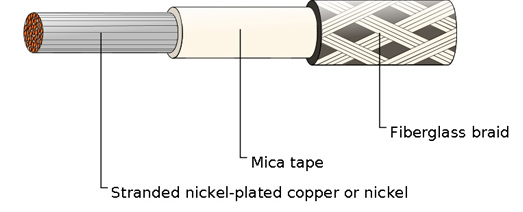

Conductor	Stranded nickel-plated copper or nickel
Insulation	Mica tape
Jacket	Fiberglass braid with high-temperature finish
Rated Voltage	300 V
Rated Temperature	450°C
Color	Tan, Red, White, Yellow, Green, Brown, Black, Blue

Size	Conductor Structure	Insulation	Jacket	Approx. O.D.
mm²		mm	mm	mm
0.14	7/0.16	0.31	0.20	1.5±0.1
0.22	7/0.20	0.31	0.20	1.6±0.1
0.25	7/0.23	0.31	0.20	1.7±0.1
0.50	16/0.20	0.31	0.20	1.9±0.1
0.75	24/0.20	0.31	0.20	2.2±0.1
1.0	32/0.20	0.31	0.20	2.3±0.1
1.5	30/0.25	0.31	0.20	2.6±0.1
2.0	40/0.25	0.31	0.20	2.9±0.2
2.5	50/0.25	0.31	0.20	3.1±0.2
4.0	56/0.30	0.31	0.20	3.6±0.2
6.0	84/0.30	0.41	0.25	4.5±0.3
10.0	140/0.30	0.41	0.25	5.8±0.3
16.0	224/0.30	0.51	0.25	7.2±0.5
25.0	350/0.30	0.51	0.25	8.7±0.5
