Fire Resisting Cables
Fire Resistant CAT6A SWB Armoured Data Cables
Fire Resisting S/FTP Cat 6A Cable to IEC 60331-23
Part NO. FFX-CAT6AS/FTP4P23FR SWB
APPLICATION
cat6a cable is a cable standard for Gigabit ethernet and other network protocol, suitable for 10baseT,
100baseTx & 1000baseT (Gigabit ethernet) application. In addition,Fire Resistant CAT6A SWB Armoured Data
Cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional
mechanically protection still maintaining the flexibility of the cable.
STANDARDS
basic design adapted to en 50173
FIRE PERFORMANCE
circuit Integrity |
Iec 60331-23; bs 6387 cWZ (optional) |
|---|---|
flame Retardance (single vertical wire or cable test) |
Iec 60332-1-2; en 60332-1-2 |
Reduced fire Propagation (Vertically-mounted bundled wires & cables test) |
Iec 60332-3-24; en 60332-3-24 |
Halogen free |
Iec 60754-1; en 50267-2-1 |
no corrosive Gas emission |
Iec 60754-2; en 50267-2-2 |
Minimum smoke emission |
Iec 61034-2; en 61034-2 |

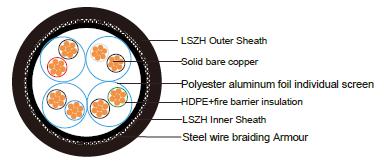

CABLE CONSTRUCTION
Conductors: 23aWG solid bare copper.
Insulation: HDPE+fire barrier insulation.
Twinning: Two coloured insulated conductors twisted together to form a pair. Individual Shield: every pair is
separately shielded with polyester aluminum foil. Overall Shield: Tinned copper braiding
Inner Sheath: Thermoplastic lsZH compound, coloured black.
Armouring: steel wire braid.
Outer Sheath: Thermoplastic lsZH compound, coloured black. UV resistance, oil resistance, mud resistance can
be offered as option.
PHySICAL AND THERMAL PROPERTIES
Temperature range: -30°c - +75°c
Minimum bending radius during installation (mobile state): 8 x overall Diameter
Minimum bending radius during operation (fixed state): 4 x overall Diameter
ELECTRICAL PROPERTIES
aWG |
|
23 |
|---|---|---|
Maximum Dc Resistance@20°c |
Ω/100m |
9.38 |
Maximum DcR Unbalance |
% |
3 |
Maximum Mutual capacitance |
pf/m |
5.8 |
Maximum capacitance Unbalance |
pf/100m |
30 |
characteristic Impedance@1-100MHz |
Ω |
100±15 |
Maximum Propagation Delay skew |
ns/100m |
18 |
TRANSMISSION PROPERTIES
fReQ MHz |
attenuation db/100m |
neXT db |
PsneXT db |
elfeXT db/100m |
PselfeXT db/100m |
Rl db |
|---|---|---|---|---|---|---|
0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
300 |
34.5 |
37.1 |
35.1 |
18.3 |
15.3 |
16.8 |
350 |
45.2 |
36.1 |
34.1 |
16.9 |
13.9 |
16.3 |
400 |
40.7 |
35.3 |
33.3 |
15.8 |
12.8 |
15.9 |
450 |
43.2 |
34.5 |
32.5 |
14.7 |
11.7 |
15.5 |
500 |
46.0 |
33.8 |
31.8 |
13.8 |
10.8 |
15.2 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
CONSTRUCTION PARAMETERS
construction no. of elements×no. |
nominal nominal nominal |
approx. |
||||
|---|---|---|---|---|---|---|
aWG |
mm mm mm |
mm kg/km |
||||
ffX-caT6as/fTP4P23fR sWb |
4x2x23 |
0.335 |
1.0 |
1.0 |
13.0 |
224 |
