Multipair Overall Screened Cables-Belden Equivalent 9306

Application

Belden Equivalent 9306 Cables multipair overall screened cables have pairs laid up in an aluminum/polyester

tape with a tinned copper drain wire. Belden Equivalent 9306 cables are suitable for used as audio, control and

instrumentation cables.

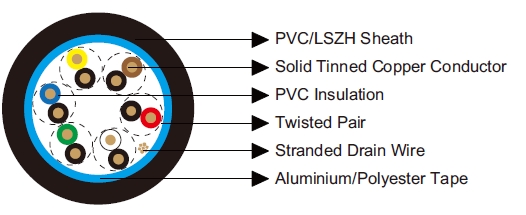

Construction

Conductor:

Tinned copper wire.

Insulation:

PVC.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown.

Electrical & Mechanical Characteristics

AWG		22
Conductor Construction		Solid
UL Style		2464
Maximum Conductor Resistance	Ω/km	54.8
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	115
Nominal Capacitance Conductor to Screen	pF/m	164
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~80

Dimensions

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE119306V	6	0.33	0.81	8.0
BE119306H	6	0.33	0.81	8.0

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
