Multipair Individually Screened Cables-Belden Equivalent 8778

Application

Belden Equivalent 8778 cables have individually screened pairs laid up. Each individually screened pair has a

22AWG stranded tinned copper drain wire. Belden Equivalent 8778 cables are used as computer cables.

Construction

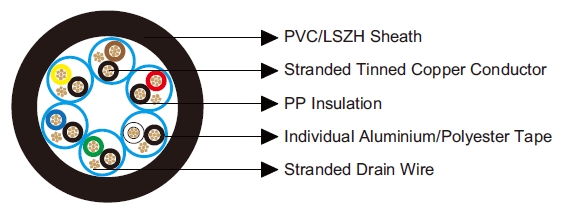

Multipair Individually Screened Cables-Belden Equivalent 8778

Conductor:

Tinned copper wire.

Insulation:

PP.

Individual Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   7x0.254
UL Style   2919
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 98
Nominal Capacitance Conductor to Screen pF/m 180
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~80

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118778V 6 0.25 1.22 9.6
BE118778H 6 0.25 1.22 9.6
