Multicore Overall Screened Cables-Belden Equivalent 8772

Application

Belden Equivalent 8772 multicore overall screened cables have individually insulated cores laid up in an

aluminum/polyester tape with a tinned copper drain wire.Belden Equivalent 8772 cables are suitable for used as

audio, control and instrumentation cables.

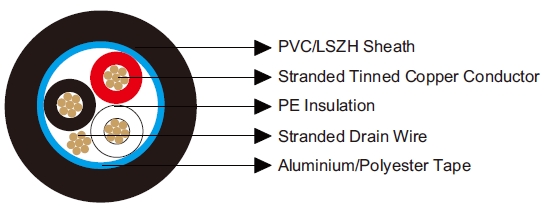

Construction

Conductor:

Tinned copper wire.

Insulation:

PE.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black, Red, Clear.

Electrical & Mechanical Characteristics

AWG		20
Conductor Construction		7x0.32
UL Style		2093
Maximum Conductor Resistance	Ω/km	34.1
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	89
Nominal Capacitance Conductor to Screen	pF/m	167
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~60

Dimensions

Ordering Code	No. of Cores	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE118772V	3	0.41	0.84	5.5
BE118772H	3	0.41	0.84	5.5

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
