Multicore Overall Screened Cables

Multicore Overall Screened Cables-Belden Equivalent 8729

Application

Belden multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape

with a drain wire. Belden Equivalent 8729 cables are suitable for used as audio, control and instrumentation

cables.

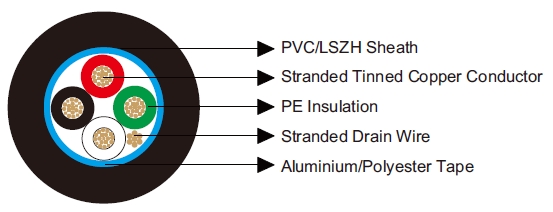

Construction

Multicore Overall Screened Cables-Belden Equivalent 8729

Conductor:

Tinned copper wire.

Insulation:

PE.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper covered steel.

Sheath:

PVC/LSZH.

Insulation Colour:

Black, Red, Green, Clear.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   19x0.16
UL Style   2094
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 72
Nominal Capacitance Conductor to Screen pF/m 138
Bending Radius   10xOverall Diameter
Operating Temperature -40~75

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118729V 4 0.41 1.30 6.5
BE118729H 4 0.41 1.30 6.5
