Multipair Individually and Overall Screened Cables
Multipair Individually and Overall Screened Cables-Belden Equivalent 8164
Application
Multipair Individually and Overall Screened Cables-Belden Equivalent 8164 have individually screened pairs laid
up in a foil/braid screen. Each individually screened pair has a 24AWG stranded tinned copper drain wire. Belden
cables are suitable for EIA RS-232 and EIA RS-422 applications, used as computer cables.

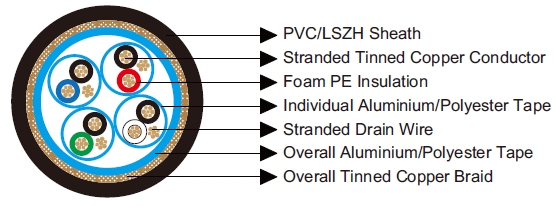

Construction
Conductor:
Tinned copper wire.
Insulation:
FoamPE.
Individual Screen:
Aluminium/Polyester Tape.
Drain Wire:
Tinned copper wire.
Overall Screen1:
Aluminium/Polyester Tape.
Overall Screen2:
Tinned copper braid, 65% coverage.
Sheath:
PVC/LSZH.
Insulation Colour:
Black & Red, Black & White, Black & Green, Black & Blue.
Electrical & Mechanical Characteristics
| AWG | 24 | |
|---|---|---|
| Conductor Construction | 7x0.2 | |
| UL Style | 2493 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 41 |
| Nominal Capacitance Conductor to Screen | pF/m | 72 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -40~60 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE118164V | 4 | 0.47 | 1.22 | 9.9 |
| BE118164H | 4 | 0.47 | 1.22 | 9.9 |
