Belden Equivalent Cables

Multicore Unscreened Armoured Cables

Multipair Overall Screened Armoured Cables-Belden Equivalent 26503

Application:

Belden multipair overall screened armoured cables provide excellent protections. They are ACIC armoured

cables, used as instrumentation cables.

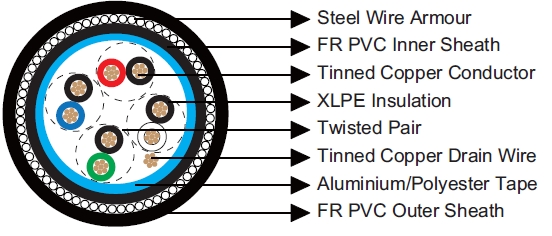

Construction:

Conductor:

Tinned copper wire.

Insulation:

XLPE.

Overall Screen:

Aluminium/Polyester tape.

Drain Wire:

18 AWG (7X26) tinned copper wire.

Inner Sheath:

FR PVC.

Armour:

Steel wire armour

Outer Sheath:

FR PVC

Insulation Colour:

Black/Red and Numbered 1, Black/White and Number 2, Black/Green and

Number 3, Black/Blue and Number 4. Other colours are available upon your request.

Electrical & Mechanical Characteristics:

AWG		6
Conductor Construction		7x24
Nominal Conductor DC Resistance @20℃	Ω/km	14
Nominal Outer Shield DC Resistance @ 20℃	Ω/km	13
Voltage Rating	V	300
Bending Radius		11xOverall Diameter
Operating Temperature	℃	-40~90

Dimensions

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE1126503V SWA	4	0.7	1.7	21.8

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
