Automotive Cable
WXC
Application
WXC Automotive Cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface
vehicles electrical systems.

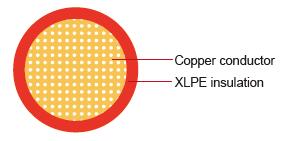

Construction:
Conductor:
Soft-annealed copper according to ASTM B
Insulation:
XLPE Ultra-Thin wall flame-retardant,halogen-free
Standard:
SAE J1678
Special properties:
Flexible
Technical Parameters:
Operating temperature: –40°C to +125°C
Conductor Construction |
Insulation |
|
||||
|---|---|---|---|---|---|---|
| Size | Nominal cross- section |
No. and Dia. of Wires | Diameter of Conductor max. |
Nominal thickness | Overall Diameter Max. |
Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | kg/km |
| 22 | 1x0.35 | 7/0.25 | 0.76 | 0.20 | 1.35 | 4 |
| 20 | 1x0.50 | 7/0.32 | 0.97 | 0.20 | 1.55 | 7 |
| 18 | 1x0.80 | 19/0.23 | 1.17 | 0.20 | 1.75 | 8 |
| 16 | 1x1.3 | 19/0.28 | 1.45 | 0.20 | 2.03 | 12 |
| 14 | 1x2 | 19/0.36 | 1.8 | 0.20 | 2.39 | 19 |
| 12 | 1x3 | 19/0.45 | 2.3 | 0.24 | 3.00 | 30 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
