Automotive Cable
TXL
Application
TXL Automotive cable is used in automotive applications where higher heat resistance, small diameter and
minimal weight is required.

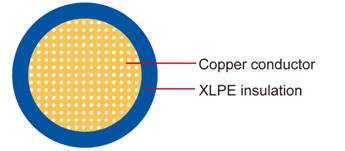

Construction:
Conductor:
Soft-annealed copperaccording to ASTM B3
Insulation:
XLPE (Polyethylene crosslinked)
Standard Compliance:
SAE J1128
Technical Parameters:
Operating temperature:–40 °C to +105 °C
| Conductor | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Size | Nominal cross- section |
No. and Dia. of Wires | Diameter Max. | thickness wall min. | thickness wall Nom. | Overall Diameter max. | Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | mm | Kg/km |
| 22 | 1 x 0.35 | 7/0.25 | 0.76 | 0.28 | 0.40 | 1.70 | 6 |
| 20 | 1 x 0.50 | 7/0.32 | 0.97 | 0.28 | 0.40 | 1.90 | 8 |
| 20 | 1 x 0.50 | 19/0.19 | 0.95 | 0.28 | 0.40 | 1.90 | 8 |
| 18 | 1 x 0.80 | 16/0.25 | 1.17 | 0.28 | 0.40 | 2.20 | 11 |
| 18 | 1 x 0.80 | 19/0.23 | 1.17 | 0.28 | 0.40 | 2.20 | 11 |
| 16 | 1 x 1.00 | 19/0.28 | 1.45 | 0.28 | 0.40 | 2.40 | 15 |
| 14 | 1 x 2.00 | 19/0.36 | 1.80 | 0.28 | 0.40 | 2.70 | 22 |
| 12 | 1 x 3.00 | 19/0.45 | 2.29 | 0.32 | 0.46 | 3.30 | 34 |
| 10 | 1 x 5.00 | 19/0.57 | 2.87 | 0.35 | 0.50 | 4.00 | 53 |
| 10 | 1 x 5.00 | 104/0.25 | 2.87 | 0.35 | 0.50 | 4.00 | 53 |
| 8* | 1 x 8.00 | 49/0.46 | 4.06 | 0.39 | 0.55 | 4.90 | 85 |
*For SAE J1128 applications only
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
