Automotive Cable
SGX
Application
SGX automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and
instrument panel circuits.

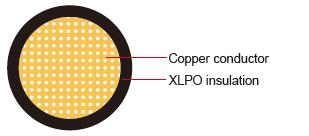

Construction:
Conductor:
Soft-annealed copper according to ASTM B
Insulation:
XLPO(Cross-Linked Polyolefin)
Standard:
SAE J 1127
Special properties:
Flame retardant
Highly resistant against acids,lyes,petrol and diesel
Technical Parameters:
Operating temperature: –40°C to +125°C
Conductor Construction |
Insulation |
|
||||
|---|---|---|---|---|---|---|
| Size | Nominal cross- section |
No. and Dia. of Wires | Diameter of Conductor max. |
Nominal thickness | Overall Diameter Max. |
Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | kg/km |
| 6 | 1x13 | 133/0.36 | 4.83 | 1.52 | 8.6 | 166 |
| 4 | 1x19 | 133/0.46 | 6.09 | 1.65 | 10.5 | 257 |
| 2 | 1x32 | 133/0.57 | 7.67 | 1.65 | 12.00 | 373 |
| 1 | 1x40 | 259/0.46 | 8.49 | 1.65 | 13.00 | 453 |
| 1/0 | 1x50 | 1026/0.26 | 9.47 | 1.65 | 14.50 | 545 |
| 2/0 | 1x62 | 1254/0.26 | 10.47 | 1.65 | 16.00 | 653 |
| 3/0 | 1x81 | 1615/0.26 | 11.98 | 1.98 | 18.50 | 847 |
| 4/0 | 1x103 | 2052/0.26 | 13.40 | 1.98 | 20.00 | 1052 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
