Automotive Cable
HFSSF-T3
Application:
HFSSF-T3 Automotive cable is used in low voltage circuits in automobiles(Vehicles).

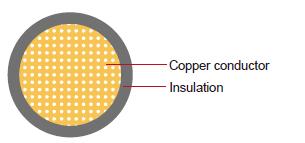

Construction:
Conductor:
Annealed standed copper
Insulation:
Halogen free compound
Standard Compliance:
ES SPEC
Technical Parameters:
Operating temperature:–40 °C to +135°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.30 |
19/0.16 |
0.8 |
48.8 |
0.3 |
1.4 |
1.5 |
5.0 |
1x0.50 |
19/0.19 |
1.0 |
34.6 |
0.3 |
1.6 |
1.7 |
6.9 |
1x0.75 |
19/0.23 |
1.2 |
23.6 |
0.3 |
1.8 |
1.9 |
10.0 |
1x1.25 |
37/0.21 |
1.5 |
14.6 |
0.3 |
2.1 |
2.2 |
14.3 |
1x2.00 |
37/0.26 |
1.8 |
9.5 |
0.4 |
2.6 |
2.7 |
22.2 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
