Automotive Cable
HAEXF
Application:
HAEXF Automotive Cable is used in low-tension electric circults for automobiles; especiallyused for circults
requiring heat resistance and cold resistance.

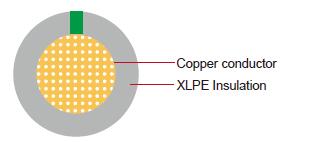

Construction:
Conductor:
Tinned stranded copper
Insulation:
XLPE
Standard Compliance:
JASO D608
Technical Parameters:
Operating temperature: –40 °C to +150°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.30 |
12/0.18 |
0.8 |
61.1 |
0.5 |
1.8 |
1.9 |
12 |
1x0.50 |
20/0.18 |
1.0 |
36.7 |
0.5 |
2.0 |
2.2 |
16 |
1x0.75 |
30/0.18 |
1.2 |
24.4 |
0.5 |
2.2 |
2.4 |
21 |
1x0.85 |
34/0.18 |
1.2 |
21.6 |
0.5 |
2.2 |
2.4 |
23 |
1x1.25 |
50/0.18 |
1.5 |
14.7 |
0.6 |
2.7 |
2.9 |
30 |
1x2.00 |
79/0.18 |
1.9 |
10.1 |
0.6 |
3.1 |
3.4 |
39 |
1x2.50 |
50/0.25 |
2.1 |
7.9 |
0.6 |
3.4 |
3.7 |
44 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
