Automotive Cable
Germany Standard
Single-core cable
FLYWK&FLRYWK
Application and Description:
FLYWK&FLRYWK automotive cable is used in motorcycles and other motor vehicles for starting
,charging,lighting,signal and instrument panel circuits.

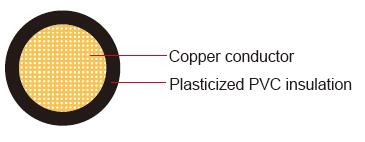

Cable Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
Plasticized PVC (heat and cold resistant)
Standard:
ISO 6722 Class B
Special properties:
Cold bending test according to ISO 6722 at –50 °C.
Short-term and long-term ageing according to ISO 6722, Class B.
Flexible conductors with PVC Thin wall insulation with increased mechanical strength
Technical Parameters:
Operating temperature: –50°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. |
Electrical resistance at 20°C max. |
Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | g/km |
| 1x0.5 | 16/0.20 | 1.0 | 37.1 | 0.28 | 1.4 | 1.6 | 6 |
| 1x0.75 | 24/0.20 | 1.2 | 24.7 | 0.6 | 2.2 | 2.5 | 33 |
| 1x1.00 | 32/0.20 | 1.4 | 18.5 | 0.3 | 1.8 | 2.1 | 57 |
| 1x1.50 | 30/0.25 | 1.7 | 12.7 | 0.3 | 2.2 | 2.4 | 111 |
| 1x2.50 | 50/0.25 | 2.1 | 7.6 | 0.7 | 3.3 | 3.7 | 278 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
