Automotive Cable
Germany Standard
Single-core cable
FLYOY/FLYKOY
Application and Description:
FLYOY/FLYKOY automotive cable is used in motorcycles and other motor vehicles for starting
charging,lighting,signal and instrument panel circuits.

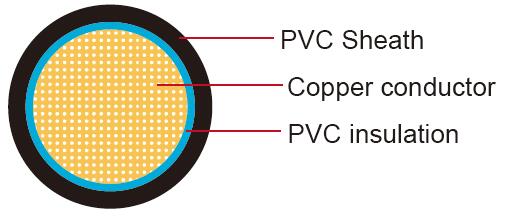

Cable Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC
Sheath:
PVC, lead free
Standard:
ISO 6722 Class B
Special properties:
Flame retardant, Extra flexibility, Cold resistance
Flexible conductors with PVC thick wall insulation with increased mechanical strength
Technical Parameters:
Operating temperature: –40°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
|||||
|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. |
Electrical resistance at 20°C max. |
Nominal thickness | Sheath wall thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | kg/km |
| 1x4 | 56/0.31 | 2.75 | 4.7 | 0.8 | 2.0 | 8.0 | 8.4 | 123 |
| 1x6 | 84/0.31 | 3.3 | 3.1 | 0.8 | 2.0 | 8.6 | 9.0 | 149 |
| 1x10 | 80/0.41 | 4.5 | 1.82 | 1.0 | 3.0 | 12.2 | 12.8 | 267 |
| 1x16 | 126/0.41 | 6.3 | 1.16 | 1.0 | 2.0 | 11.5 | 12.1 | 279 |
| 1x50 | 396/0.41 | 10.5 | 0.368 | 0.8 | 1.4 | 14.5 | 15.1 | 587 |
| 1x50 | 1600/0.21 | 10.9 | 0.386 | 0.8 | 1.4 | 14.5 | 15.1 | 592 |
| 1x70 | 2200/0.21 | 13.3 | 0.272 | 1.0 | 1.6 | 17.5 | 18.3 | 870 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
