Single-core cable

FLYK

Application and Description:

FLYK automotive cable is used for cars, trucks and other vehicles.

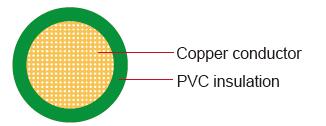

Cable Construction:

FLYK automotive cable

Conductor:

Cu-ETP1 bare according to DIN EN 13602

Insulation:

PVC insulation(Cold resistant)

Standard:

ISO 6722 Class B

Special properties:

Cold bending test according to ISO 6722 at –50 °C.

Short-term and long-term ageing according to ISO 6722, Class B.

Technical Parameters:

Operating temperature: –50°C to +105°C



Conductor Construction

Insulation

Cable
Nominal cross- section No. and Dia. of Wires Diameter
of Conductor max.		 Electrical
resistance at 20°C max.		 Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.50 28 /0.16 1.1 37.7 0.6 2.0 2.3 9
1x0.75 42/0.16 1.3 25.1 0.6 2.2 2.5 12
1x1.00 57/0.16 1.5 18.8 0.6 2.4 2.7 15
1x1.50 84/0.16 1.8 12.7 0.6 2.7 3.0 20
1x2.50 140/0.16 2.3 7.54 0.7 3.5 3.9 32



Conductor Construction

Insulation

Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical
resistance at 20°C
max.		 Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x4.00 196/0.16 3.3 4.71 0.8 4.5 4.9 53
1x4.5 84/0.16 1.80 12.7 0.6 2.7 3.0 23
1x6.00 294/0.16 4.2 3.14 0.8 5.3 6.0 76
1x10.00 455/0.16 5.2 1.85 1.0 6.7 7.3 124
1x16.00 490/0.21 6.7 1.16 1.0 8.2 8.8 198
1x25.00 798/0.21 8.0 0.74 1.2 9.9 10.5 298

Note: Other configurations, sizes, colors and length not specified herein are available upon request.

The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
