Automotive Cable
Germany Standard
Single-core cable
FLU6Y
Application:
FLU6Y automotive cable is used for cable harnesses. Very good resistance to fuels and abrasion.

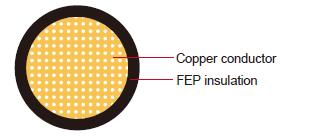

Construction:
Conductor:
Plain,tinned Silver or Nickel plated copper
Insulation:
FEP
Standard:
ISO 6722 Class F
Technical Parameters:
Operating temperature: –40°C to +200°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter of Conductor max. |
Electrical |
Nominal Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.13 |
7/0.16 |
0.5 |
140 |
0.16 |
0.85 |
0.95 |
2.3 |
1x0.14 |
7/0.16 |
0.5 |
140 |
0.16 |
0.85 |
0.95 |
2.3 |
1x0.22 |
7/0.21 |
0.7 |
86.5 |
0.16 |
0.95 |
1.05 |
2.9 |
1x0.35 |
7/0.26 |
0.7 |
55.5 |
0.16 |
1.10 |
1.20 |
4.3 |
1x0.50 |
19/0.19 |
1.0 |
38.2 |
0.16 |
1.30 |
1.40 |
6.4 |
1x0.75 |
19/0.23 |
1.2 |
25.4 |
0.16 |
1.50 |
1.60 |
8.8 |
1x1.00 |
19/0.26 |
1.4 |
19.1 |
0.16 |
1.65 |
1.75 |
10.8 |
1x1.50 |
19/0.32 |
1.7 |
13.0 |
0.16 |
1.90 |
2.10 |
15.8 |
1x2.50 |
19/0.41 |
2.2 |
7.82 |
0.20 |
2.45 |
2.75 |
25.8 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
