Automotive Cable
Germany Standard
Single-core cable
FLRYY
Application:
FLRYY Automotive Cable is used for low voltage electrical installations in vehicles.

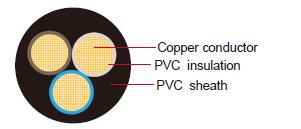

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN13602
Insulation:
PVC
Sheath:
PVC
Standard Compliance:
ISO 6722 Class B
Technical Parameters:
Operating temperature: –40 °C to +105 °C
|
Conductor |
Insulation |
Cable |
|||
|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Electrical |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter max. |
mm2 |
no./mm |
mΩ/m |
mm |
mm |
mm |
mm |
1x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.4 |
2.2 |
2x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
3.7 |
3x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
3.9 |
4x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
4.3 |
5x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
4.6 |
7x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
5.0 |
10x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
6.4 |
1x0.5 |
16/0.21 |
37.1 |
0.22 |
1.3 |
0.6 |
2.5 |
2x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
4.5 |
3x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
4.8 |
4x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
5.2 |
5x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
5.6 |
7x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
6.1 |
10x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
7.7 |
1x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.4 |
2.8 |
2x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
5.1 |
3x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
5.4 |
|
Conductor |
Insulation |
Cable |
|||
|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Electrical |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter max. |
mm2 |
no./mm |
mΩ/m |
mm |
mm |
mm |
mm |
4x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
5.9 |
5x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
6.4 |
7x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
7.0 |
10x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.8 |
9.3 |
1x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.4 |
3.0 |
2x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.6 |
5.5 |
3x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.6 |
5.8 |
4x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.6 |
6.4 |
5x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.6 |
7.0 |
7x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.8 |
8.0 |
10x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.8 |
10.1 |
1x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.4 |
3.3 |
2x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.6 |
6.1 |
3x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.6 |
6.4 |
4x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.6 |
7.1 |
5x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.6 |
7.8 |
7x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.8 |
8.9 |
10x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.4 |
11.4 |
1x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.6 |
3.9 |
2x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.6 |
7.3 |
3x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.6 |
7.8 |
4x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.6 |
8.6 |
5x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.8 |
9.8 |
7x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.8 |
10.7 |
10x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.8 |
13.7 |
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
