Automotive Cable
Germany Standard
Single-core cable
FLRYWd
Application:
FLRYWd Automotive Cable is used for vehicle constructions.

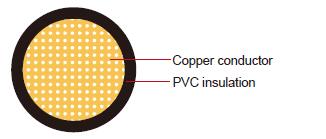

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN 13602
Insulation:
PVC
Standard:
ISO 6722 Class B
Technical Parameters:
Operating temperature: –40°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter |
Electrical |
Nominal thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.35 |
7/0.26 |
0.80 |
52 |
0.20 |
1.3 |
1.4 |
4.48 |
1x0.50 |
16/0.21 |
1.00 |
37.1 |
0.22 |
1.4 |
1.7 |
6.6 |
1x0.75 |
24/0.21 |
1.20 |
24.7 |
0.24 |
1.7 |
1.9 |
9.0 |
1x1.00 |
32/0.21 |
1.35 |
18.5 |
0.24 |
1.9 |
2.1 |
11.0 |
1x1.50 |
30/0.26 |
1.70 |
12.7 |
0.24 |
2.2 |
2.4 |
16.0 |
1x2.00 |
30/0.31 |
1.90 |
9.42 |
0.28 |
2.4 |
2.8 |
22.0 |
1x2.50 |
50/0.26 |
2.20 |
7.6 |
0.28 |
2.7 |
3.0 |
6.0 |
1x3.00 |
45/0.31 |
2.40 |
6.15 |
0.32 |
2.9 |
3.4 |
32.5 |
1x4.00 |
56/0.31 |
2.75 |
4.71 |
0.32 |
3.4 |
3.8 |
42.0 |
1x6.00 |
84/0.31 |
3.30 |
3.14 |
0.32 |
4.0 |
4.3 |
61.0 |
1x10.00 |
80/0.41 |
4.50 |
1.82 |
0.48 |
5.4 |
6.0 |
108 |
1x16.00 |
126/0.41 |
6.30 |
1.16 |
0.52 |
7.3 |
7.9 |
170 |
1x25.00 |
196/0.41 |
7.80 |
0.74 |
0.52 |
8.6 |
9.4 |
265 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
