Single-core cable

FLRYW-B

Application and Description:

FLRYW-B Automotive Cable is used as low-tension electric wire for automobiles.

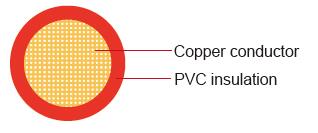

Cable Construction:

FLRYW-B Automotive Cable

Conductor:

Cu-ETP1 bare according to DIN EN 13602

Insulation:

PVC Standard:ISO 6722 Class C

Special properties:

Heat resistant cable, Flame retardant, Extra flexibility

Flexible conductor with PVC Thin wall insulation with increase mechanical strength

Technical Parameters:

Operating temperature: –50°C to +125°C



Conductor Construction

Insulation

Cable
Nominal
cross- section		 No. and Dia. of Wires Diameter
of Conductor max.		 Electrical
resistance at 20°C max.		 Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm g/km
1x0.35 12 /0.21 0.9 54.4 0.2 1.2 1.4 5
1x0.50 16/0.21 1.0 37.1 0.22 1.4 1.6 6
1x0.75 24/0.21 1.2 24.7 0.24 1.7 1.9 9
1x1.00 32/0.21 1.35 18.5 0.24 1.9 2.1 11
1x1.25 16/0.33 1.7 14.9 0.24 2.1 2.3 12
1x1.50 30/0.26 1.7 12.7 0.24 2.2 2.4 17

1 x2.00 28/0.3 2.0 9.42 0.28 2.5 2.8 24
1 x2.50 50/0.26 2.2 7.6 0.28 2.7 3.0 28
1 x3.00 45/0.3 2.4 6.15 0.32 3. 3.4 34
1 x4.00 56/0.3 2.75 4.7 0.32 3.4 3.7 44
1 x5.00 65/0.33 3. 3.94 0.32 3.9 4.2 50
1 x6.00 84/0.3 3.3 3.14 0.32 4.0 4.3 64
1 x8.00 50/0.46 4.3 2.38 0.32 4.6 5.0 82
1 x10.00 38/0.4 4.5 1.82 0.48 5.4 5.8 113
1 x12.00 96/0.4 5.4 1.52 0.48 5.8 6.5 120
1 x16.00 126/0.4 5.5 1.16 0.52 6.5 7.0 171
1 x20.00 152/0.4 6.9 0.955 0.52 7.0 7.8 192
1 x25.00 196/0.4 7.0 0.743 0.52 7.9 8.7 255

The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
