Automotive Cable
Germany Standard
Single-core cable
FLRYK
Application and Description:
FLRYK automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and
instrument panel circuits.

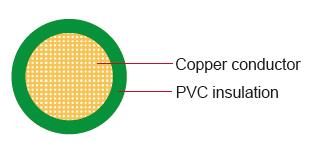

Cable Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC insulation(cold resistant)
Standard:
ISO 6722 Class B
Special properties:
Cold bending test according to ISO 6722 at –50 °C.
Short-term and long-term ageing according to ISO 6722, Class B.
Technical Parameters:
Operating temperature: –50°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. |
Electrical resistance at 20°C max. | Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x0.50 | 16 /0.21 | 1.0 | 37.7 | 0.22 | 1.4 | 1.6 | 7 |
| 1x1.00 | 32/0.21 | 1.4 | 18.5 | 0.30 | 2.3 | 2.1 | 12 |
| 1x1.50 | 30/0.26 | 1.7 | 12.7 | 0.24 | 2.2 | 2.4 | 17 |
| 1x2.50 | 50/0.26 | 2.1 | 7.6 | 0.70 | 3.5 | 3.7 | 33 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
