Automotive Cable
Germany Standard
FLRYB11Y
Application
FLRYB11Y Automotive cable is used forautomobiles; it has excellent abrasion resistance and better resistance to
bending fatigue.

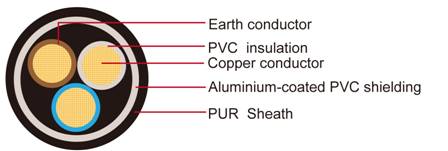

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC
Cover for the earth conductor:
Conductive PVC.
Shielding:
Aluminium-coated PVC foil.
Sheath:
PUR (polyurethane)
Standard Compliance:
ISO 6722 Calss B
Technical Parameters:
Operating temperature:–40 °C to +105 °C
| Conductor | Insulation | Cable | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal cross- section |
No. and Dia. of Wires | Diameter Max. | Electrical resistance at 20℃ Max. | thickness wall Nom. | Diameter of core | Sheath thickness | Overall Diameter (min.) | Overall Diameter (max..) | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km |
| 1 x 0.35+(0.35) | 7 /0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 3.90 | 4.30 | 21 |
| 2 x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.10 | 4.50 | 24 |
| 3 x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.40 | 4.80 | 30 |
| 4 x0.35+(0.35) | 7 /0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.80 | 5.20 | 39 |
| 5 x0.35+(0.35) | 7 /0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 5.40 | 5.80 | 46 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
