Automotive Cable
Germany Standard
Single-core cable
FLRY-B
Application
FLRY-B Automotive cable with symmetrical conductor structure (type B) and thin wall is used for automobiles,
motorcycles electrical equipment in high temperature condition .

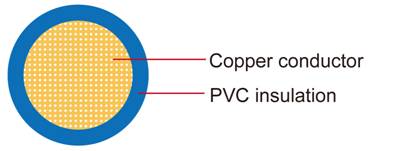

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN13602
Insulation:
PVC
Standard Compliance:
ISO 6722 Class B
Technical Parameters:
Operating temperature:-40℃ to 105℃
| Conductor | Insulation | Cable | ||||
|---|---|---|---|---|---|---|
| Nominal cross- section |
No. and Dia. of Wires | Diameter max. | Resistance at 20℃ Bare/tinned max. |
Thickness wall min. |
Overall diameter |
Weight approx. |
| (mm2) | No./mm | mm | mΩ/m | (mm) | (mm) | kg/km |
| 1x0.35 | 12/0.21 | 0.90 | 52.00/5.50 | 0.20 | 1.40 | 5 |
| 1x0.50 | 16/0.21 | 1.00 | 37.10/38.20 | 0.22 | 1.60 | 7 |
| 1x0.75 | 24/0.21 | 1.20 | 24.70/25.40 | 0.24 | 1.90 | 9 |
| 1x1.00 | 32/0.21 | 1.35 | 18.50/19.10 | 0.24 | 2.10 | 11 |
| 1x1.50 | 30/0.26 | 1.70 | 12.70/13.00 | 0.24 | 2.40 | 16 |
| 1x2.00 | 30/0.31 | 1.90 | 9.31/9.59 | 0.24 | 2.60 | 22 |
| 1x2.50 | 50/0.26 | 2.20 | 7.60/7.80 | 0.28 | 3.00 | 26 |
| 1x3.00 | 45/0.31 | 2.40 | 6.21/6.40 | 0.28 | 3.20 | 33 |
| 1x4.00 | 56/0.31 | 2.75 | 4.70/4.80 | 0.32 | 3.70 | 42 |
| 1x6.00 | 84/0.31 | 3.30 | 3.10/3.20 | 0.32 | 4.30 | 61 |
| 1x10.00 | 80/0.41 | 4.50 | 1.82/1.85 | 0.48 | 6.00 | 108 |
| 1x16.00 | 126/0.41 | 6.30 | 1.16/1.18 | 0.52 | 7.90 | 170 |
| 1x25.00 | 196/0.41 | 7.80 | 0.743/0.757 | 0.52 | 9.40 | 265 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
