Automotive Cable
Germany Standard
Single-core cable
FLR5Y-B
Application and Description:
FLR5Y-B automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal
and instrument panel circuits.

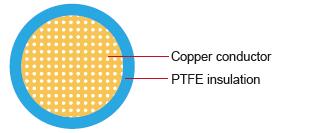

Cable Construction:
Conductor:
Silver or Nickel plated copper according to DIN EN 13602
Insulation:
PTFE
Standard:
ISO 6722 Class H
Special properties:
Excellent resistance to chemicals
Technical Parameters:
Operating temperature: –90°C to +260°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. |
Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x 0.35 | 12/0.21 | 0.9 | 87.9 | 0.20 | 1.25 | 1.35 | 5 |
| 1x 0. 5 | 16/0.21 | 1.0 | 56.8 | 0.22 | 1.4 | 1.6 | 6 |
| 1x 0. 75 | 24/0.21 | 1.2 | 38.6 | 0.24 | 1.7 | 1.9 | 9 |
| 1x1 | 32/0.21 | 1.4 | 25.7 | 0.24 | 1.75 | 1.95 | 11 |
| 1x 1.5 | 30/0.26 | 1.7 | 19.3 | 0.24 | 2.1 | 2.3 | 16 |
| 1x 2.5 | 50/0.26 | 2.2 | 13.2 | 0.28 | 2.5 | 2.8 | 26 |
| 1x 4 | 56/0.31 | 2.75 | 4.91 | 0.32 | 3.05 | 3.35 | 40 |
| 1x 6 | 84/0.31 | 3.4 | 3.27 | 0.32 | 3.85 | 4.15 | 61 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
