Automotive Cable
Germany Standard
Single-core cable
FLR51Y-B
Application:
FLR51Y-B automotive cable is used for cable harnesses.

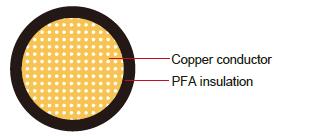

Construction:
Conductor:Plain, Tinned, Silver or Nickel plated copper
Insulation:PFA Standard:ISO 6722 Class H
Technical Parameters:
Operating temperature: –40°C to +250°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter of Conductor max. |
Electrical |
Nominal Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.35 |
12/0.21 |
0.90 |
55.5 |
0.20 |
1.25 |
1.4 |
4.5 |
1x0.50 |
16/0.21 |
1.00 |
38.2 |
0.22 |
1.50 |
1.6 |
6.6 |
1x0.75 |
24/0.21 |
1.20 |
25.4 |
0.24 |
1.75 |
1.9 |
9.0 |
1x1.00 |
32/0.21 |
1.35 |
19.1 |
0.24 |
1.9 |
2.1 |
11 |
1x1.50 |
30/0.26 |
1.70 |
13.0 |
0.24 |
2.2 |
2.4 |
16 |
1x2.50 |
50/0.26 |
2.20 |
7.82 |
0.28 |
2.75 |
3.0 |
26 |
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
