Automotive Cable
Germany Standard
Single-core cable
FLR2X-A
Application:
FLR2X-A Automotive Cable is used in motor and battery ground low voltage circuit applications with
high temperatures (Rated for continuous use from -40°C up to 125°C), tight spaces, and where aging and
abrasion resistance are necessary.

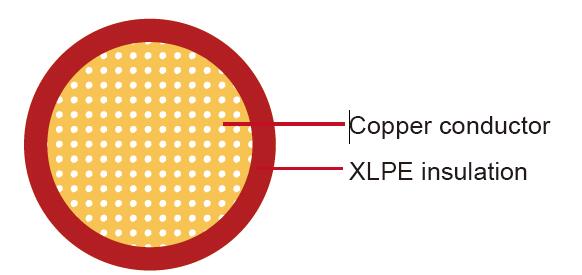

Construction:
Conductor:
Annealed stranded copper(Type A)
Insulation:
XLPE
Standard:
ISO 6722 Class C
Technical Parameters:
Operating temperature: –40°C to +125°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal cross- section |
No. and Dia. of Wires |
Diameter of Conductor- max. |
Electrical resistance at 20°Cmax. |
Nominal thickness |
Overall Diameter Min. |
Overall Diameter Max |
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
0.22 |
7/0.21 |
0.7 |
86.5 |
0.2 |
1.15 |
1.2 |
3.4 |
0.35 |
7/0.27 |
0.9 |
54.4 |
0.25 |
1.2 |
1.3 |
4. |
0.5 |
19/0.19 |
1.1 |
37.1 |
0.28 |
1.4 |
1.6 |
7 |
0.75 |
19/0.24 |
1.3 |
24.7 |
0.3 |
1.7 |
1.9 |
9.5 |
1 |
19/0.27 |
1.5 |
18.5 |
0.3 |
1.9 |
2.1 |
12 |
1.5 |
19/0.33 |
1.8 |
12.7 |
0.3 |
2.2 |
2.4 |
17 |
2.0 |
19/0.38 |
2.0 |
9.42 |
0.28 |
2.8 |
2.85 |
26 |
2.5 |
37/0.28 |
2.2 |
7.6 |
0.35 |
2.7 |
3.0 |
27 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
