Automotive Cable
Germany Standard
Single-core cable
FLR14Y
Application:
FLR14Y Automotive Cable is used for cable harnesses,cable with excellent resistance against chemicals,can be
used as an alternative to PTFE.

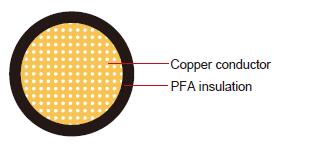

Construction:
Conductor:
Sliver or Nickel plated copper
Insulation:
PFA Standard:ISO 6722 Class H
Technical Parameters:
Operating temperature: –80°C to +260°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter of Conductor max. |
Electrical |
Nominal Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.5 |
19/0.19 |
1.00 |
38.2 |
0.22 |
1.4 |
1.60 |
7 |
1x0.75 |
19/0.22 |
1.20 |
25.4 |
0.24 |
1.7 |
1.90 |
10 |
1x1 |
19/0.25 |
1.35 |
19.1 |
0.24 |
1.9 |
2.10 |
12 |
1x1.5 |
19/0.32 |
1.70 |
13 |
0.24 |
2.2 |
2.40 |
17 |
1x2.5 |
19/0.40 |
2.20 |
7.8 |
0.28 |
2.7 |
3.00 |
28 |
1x4 |
56/0.30 |
2.70 |
4.8 |
0.32 |
3.4 |
3.70 |
45 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
