Automotive Cable
Germany Standard
FLR11Y
Application
FLR11Y Automotive Cable is used in motorcycles and other motor vehicles for starting
,charging,lighting,signal and instrument panel circuits.

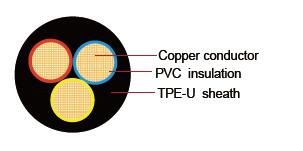

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC Outer
Sheath:
TPE-U
Standard:
ISO 6722 Class B
Special properties:
Flame retardant
Highly resistant against acids,lyes,petrol and diesel
Technical Parameters:
Operating temperature: –40°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. |
Nominal thickness | Diameter of core | Sheath wall thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 2x0.75 | 42/0.16 | 1.2 | 24.7 | 0.4 | 1.9 | 0.8 | 5.2 | 5.6 | 47 |
| 3x1 | 32/0.21 | 1.5 | 18.5 | 0.35 | 2.0 | 0.7 | 5.6 | 6.0 | 54 |
| 3x1.5 | 30/0.26 | 1.7 | 13.3 | 0.4 | 2.4 | 0.75 | 6.5 | 6.9 | 71 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
