Automotive Cable
Germany Standard
Single-core cable
FLALRYW
Application and Description:
FLALRYW Automotive Cable is suitable for application inside the engine compartment.

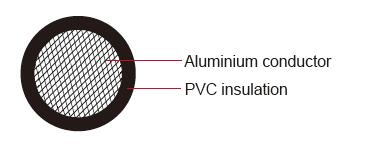

Cable Construction:
Conductor:
Aluminium 99.7%≥1.25 mm2
Aluminium alloy < 1.25 mm2
Insulation:
PVC
Standard:
ISO 6722 Class C
Special properties:
Hot pressure resistance
Considerable weight savings compared to copper
Technical Parameters:
Operating temperature: –40°C to +125°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. |
Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x0.75 | 11/0.3 | 1.3 | 43.6 | 0.24 | 1.7 | 1.9 | 4 |
| 1x1.00 | 16/0.29 | 1.5 | 32.7 | 0.24 | 1.9 | 2.1 | 5 |
| 1x1.25 | 16/0.32 | 1.7 | 24.8 | 0.24 | 2.1 | 2.3 | 6 |
| 1x1.50 | 16/0.35 | 1.8 | 21.2 | 0.24 | 2.2 | 2.4 | 7 |
| 1x2.0 | 15/0.42 | 2.0 | 15.7 | 0.28 | 2.5 | 2.8 | 9 |
| 1x2.5 | 19/0.43 | 2.2 | 12.7 | 0.28 | 2.7 | 3.0 | 12 |
| 1x3.0 | 23/0.42 | 2.4 | 10.2 | 0.32 | 3.1 | 3.4 | 14 |
| 1x4.0 | 30/0.42 | 2.8 | 7.85 | 0.32 | 3.4 | 3.7 | 17 |
| 1x5.0 | 36/0.42 | 3.1 | 6.57 | 0.32 | 3.9 | 4.2 | 19 |
| 1x6.0 | 45/0.42 | 3.4 | 5.23 | 0.32 | 4.0 | 4.3 | 23 |
| 1x8.0 | 59/0.42 | 4.3 | 3.97 | 0.32 | 4.6 | 5.0 | 29 |
| 1x10.0 | 50/0.52 | 4.5 | 3.03 | 0.48 | 5.3 | 6.0 | 43 |
| 1x12.0 | 60/0.52 | 5.4 | 2.53 | 0.48 | 5.8 | 6.5 | 50 |
| 1x16.0 | 78/0.52 | 5.8 | 1.93 | 0.52 | 6.4 | 7.2 | 63 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
