Automotive Cable
Germany Standard
Single-core cable
FLALRY
Application and Description:
FLALRY Automotive Cable is designed for telecommunication overhead contract line and electronics.

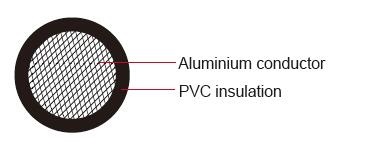

Cable Construction:
Conductor:
Aluminium 99.7%≥1.25 mm2
Aluminium alloy < 1.25 mm2
Insulation:
PVC
Standard:
ISO 6722 Class B
Special properties:
Cables with cross-sections > 10 mm2 can be used as battery cables Considerable weight savings compared to
copper
Technical Parameters:
Operating temperature: –40°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. |
Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x075 | 11/0.3 | 1.3 | 43.6 | 0.24 | 1.7 | 1.9 | 4 |
| 1x1.00 | 16/0.29 | 1.5 | 32.7 | 0.24 | 1.9 | 2.1 | 5 |
| 1x1.25 | 16/0.32 | 1.7 | 24.8 | 0.24 | 2.1 | 2.3 | 6 |
| 1x1.50 | 16/0.35 | 1.8 | 21.2 | 0.24 | 2.2 | 2.4 | 7 |
| 1x2.0 | 15/0.42 | 2.0 | 15.7 | 0.28 | 2.5 | 2.8 | 9 |
| 1x2.5 | 19/0.43 | 2.2 | 12.7 | 0.28 | 2.7 | 3.0 | 12 |
| 1x3.0 | 23/0.42 | 2.4 | 10.2 | 0.32 | 3.1 | 3.4 | 14 |
| 1x4.0 | 30/0.42 | 2.8 | 7.85 | 0.32 | 3.4 | 3.7 | 17 |
| 1x5.0 | 36/0.42 | 3.1 | 6.57 | 0.32 | 3.9 | 4.2 | 19 |
| 1x6.0 | 45/0.42 | 3.4 | 5.23 | 0.32 | 4.0 | 4.3 | 23 |
| 1x8.0 | 59/0.42 | 4.3 | 3.97 | 0.32 | 4.6 | 5.0 | 29 |
| 1x10.0 | 50/0.52 | 4.5 | 3.03 | 0.48 | 5.3 | 6.0 | 43 |
| 1x12.0 | 60/0.52 | 5.4 | 2.53 | 0.48 | 5.8 | 6.5 | 50 |
| 1x16.0 | 78/0.52 | 5.8 | 1.93 | 0.52 | 6.4 | 7.2 | 63 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
