Automotive Cable
Germany Standard
FL6Y2G
Application
FL6Y2G Automotive Cable is used for ABS braking systems, wiring inside the
engine compartment.

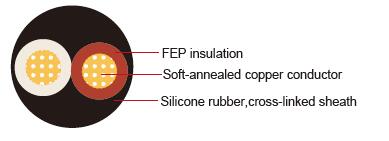

Construction:
Conductor:
Cu-ETP1 or bare according to DIN EN 13602
Insulation:
Fluorinated ethylene propylene(FEP) insulation
Sheath:
Siliconne rubber,cross-linked according to ISO 14572 class F
Standard:
ISO 6722 Class F
Technical Parameters:
Operating temperature: –40°C to +210°C
|
Conductor |
Insulation |
Cable |
|||||
|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Electrical resistance at 20°C max. |
Thickness Wall nom. | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | (mm) | mΩ/m | (mm) | (mm) | mm | mm | kg/km |
| 2x0.35 | 12/0.21 | 0.8 | 52 | 0.4 | 0.53 | 4.6 | 5 | 32 |
| 2x0.25 | 24/0.16 | 0.7 | 86.5 | 0.4 | 0.53 | 3.4 | 3.8 | 24 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
