Automotive Cable
Germany Standard
Single-core cable
FL2X
Application:
FL2X Automotive Cable is used for low voltage electric installations in vehicles.

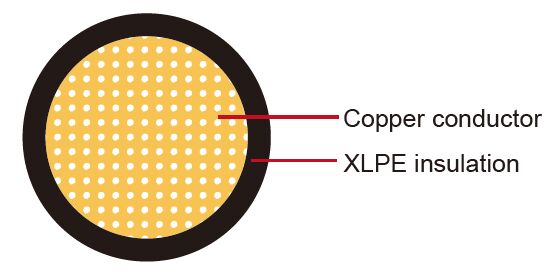

Cable Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
XLPE
Standard:
ISO 6722 Class C
Technical Parameters:
Operating temperature:–40°C to +125°C
|
CONDUCTOR CONSTRUCTION |
INSULATION |
CABLE |
||||
|---|---|---|---|---|---|---|---|
NOMINAL CROSS- SECTION |
NO. AND DIA. OF WIRES |
DIAMETER |
ELECTRICAL |
NOMINAL THICKNESS |
OVERALL DIAMETER MIN. |
OVERALL DIAMETER MAX. |
WEIGHT APPROX. |
MM2 |
NO./MM |
MM |
MΩ/M |
MM |
MM |
MM |
KG/KM |
1x0.50 |
16/0.21 |
1.10 |
37.1 |
0.6 |
2.1 |
2.3 |
8 |
1x0.75 |
24/0.21 |
1.30 |
24.7 |
0.6 |
2.35 |
2.5 |
11 |
1x1.00 |
32/0.21 |
1.50 |
18.5 |
0.6 |
2.55 |
2.7 |
14 |
1x1.50 |
30/0.26 |
1.80 |
12.7 |
0.6 |
2.85 |
3.0 |
19 |
1x2.00 |
40/0.26 |
2.00 |
9.42 |
0.6 |
3.15 |
3.3 |
24 |
1x2.50 |
50/0.26 |
2.20 |
7.6 |
0.7 |
3.45 |
3.6 |
30 |
1x3.00 |
60/0.26 |
2.40 |
6.15 |
0.7 |
3.95 |
4.1 |
38 |
1x4.00 |
56/0.31 |
2.80 |
4.71 |
0.8 |
4.20 |
4.4 |
48 |
1x6.00 |
84/0.31 |
3.40 |
3.14 |
0.8 |
4.80 |
5.0 |
68 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
