Automotive Cable
Germany Standard
Single-core cable
FL2G
Application:
FL2G Automotive Cable is used in battery lead-wire for automobiles.

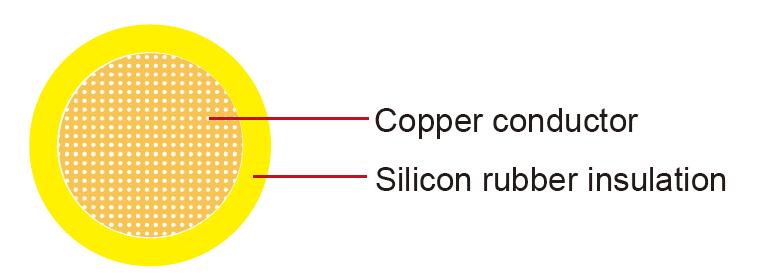

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN 13602
Insulation:
Silicon rubber Standard:ISO 6722 Class F
Technical Parameters:
Operating temperature: –40°C to +200°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal cross- section |
No. and Dia. of Wires |
Diameter of Conductor- max. |
Electrical resistance at 20°C max. |
Nominal thickness |
Overall Diameter Min. |
Overall Diameter Max |
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
(mm) |
(mm) |
mm |
kg/km |
0.5 |
16/0.21 |
1.1 |
37.1 |
0.48 |
2 |
2.3 |
8 |
0.75 |
24/0.21 |
1.3 |
24.7 |
0.48 |
2.2 |
2.5 |
10.6 |
1 |
32/0.21 |
1.5 |
18.5 |
0.48 |
2.4 |
2.7 |
13.5 |
1.5 |
30/0.26 |
1.8 |
12.7 |
0.48 |
2.7 |
3 |
17.9 |
2.5 |
50/0.26 |
2.2 |
7.6 |
0.56 |
3.3 |
3.6 |
29.5 |
4 |
56/0.31 |
2.8 |
4.71 |
0.64 |
4 |
4.4 |
46.7 |
6 |
84/0.31 |
3.4 |
3.14 |
0.64 |
4.6 |
5 |
66 |
10 |
80/0.41 |
4.5 |
1.82 |
0.8 |
5.9 |
6.5 |
113 |
16 |
126/0.41 |
6.3 |
1.16 |
0.8 |
7.7 |
8.3 |
173 |
25 |
196/0.41 |
7.8 |
0.743 |
1.04 |
9 |
10 |
266 |
35 |
276/0.41 |
9 |
0.527 |
1.04 |
10.4 |
11 |
361 |
50 |
396/0.41 |
10.5 |
0.368 |
1.25 |
12.4 |
13.5 |
526 |
70 |
360/0.51 |
12.5 |
0.259 |
1.25 |
14.2 |
15.5 |
750 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
