Automotive Cable
CIVUS
Application:
CIVUS Automotive Cable is used in low voltage circuits in automobiles.

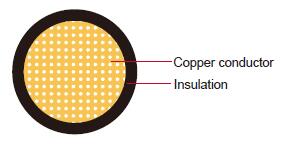

Construction:
Conductor:
Annealed standed copper or copper alloy
Insulation:
Polyvinyl Chloride(PVC)
Standard Compliance:
JASO D611
Technical Parameters:
Operating temperature:–40 °C to +85°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.13 |
7/SB |
0.45 |
210 |
0.20 |
0.85 |
0.95 |
2.0 |
1x0.22 |
7/SB |
0.55 |
84.4 |
0.20 |
0.95 |
1.05 |
3.0 |
1x0.35 |
7/SB |
0.70 |
54.4 |
0.20 |
1.10 |
1.20 |
3.9 |
1x0.5 |
7/SB |
0.85 |
37.1 |
0.20 |
1.25 |
1.40 |
5.7 |
1x0.75 |
11/SB |
1.00 |
24.7 |
0.20 |
1.40 |
1.60 |
7.6 |
1x1.25 |
16/SB |
1.40 |
14.9 |
0.20 |
1.80 |
2.00 |
12.4 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
