Automotive Cable
CAVUS
Application
CAVUS Automotive Cable is used for automotive wiring.

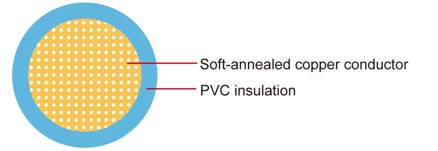

Construction:
Conductor:
Cu-ETP1 according to JIS C 3102
Insulation:
PVC
Standard Compliance:
JASO D 611-94
Technical Parameters:
Operating temperature:–40 °C to +80 °C
| Conductor | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section |
NO. and Dia. of Wires | Diameter Max. | Electrical resistance at 20℃ Max. | thickness wall Nom. | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km |
| 1 x0.30 | 7/0.26 | 0.70 | 50.20 | 0.20 | 1.10 | 1.20 | 4 |
| 1 x0.50 | 7/0.32 | 0.90 | 32.70 | 0.20 | 1.30 | 1.40 | 6 |
| 1 x0.85 | 11/0.32 | 1.10 | 20.80 | 0.20 | 1.50 | 1.60 | 9 |
| 1 x1.25 | 16/0.32 | 1.40 | 14.30 | 0.20 | 1.80 | 1.90 | 13 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
