Automotive Cable
AVXSF
Application:
AVXSF Automotive Cable is used in low voltage circuits in automobiles(vehicles and motorcycles)

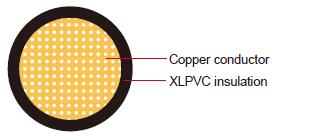

Construction:
Conductor:
Annealed standed copper
Insulation:
Cross-linked Polyvinyl Chloride(XLPVC)
Standard Compliance:
HKMC ES 91110-05
Technical Parameters:
Operating temperature:–45 °C to +200°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x10.0 |
399/0.18 |
4.2 |
1.85 |
0.9 |
6.0 |
6.2 |
110 |
1x15.0 |
588/0.18 |
5.0 |
1.32 |
1.1 |
7.2 |
7.5 |
160 |
1x20.0 |
779/0.18 |
6.3 |
0.99 |
1.2 |
8.7 |
9.0 |
220 |
1x25.0 |
1007/0.18 |
7.1 |
0.76 |
1.3 |
9.7 |
10.0 |
280 |
1x30.0 |
1159/0.18 |
8.0 |
0.69 |
1.3 |
10.6 |
10.9 |
335 |
1x40.0 |
1554/0.18 |
9.2 |
0.50 |
1.4 |
12.0 |
12.4 |
445 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
