Automotive Cable
Single-core cable
AVSSHApplication:
AVSSH Automotive Cable is used for automobiles, vehicles and Motorcycles.

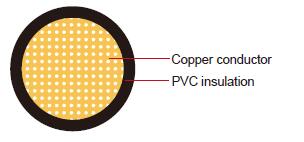

Construction:
Conductor:
Stranded ,bare copper
Insulation:
PVC
Standard Compliance:
JASO D 611-09 JASO D608
Technical Parameters:
Operating temperature: –40 °C to +100 °C
Rated voltage:25VA and 60 VDC
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
NO. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.3f |
19/0.16 |
0.8 |
48.6 |
0.3 |
1.4 |
1.5 |
5 |
1x0.5f |
19/0.16 |
1.0 |
34.6 |
0.3 |
1.6 |
1.7 |
7 |
1x0.75f |
19/0.23 |
1.2 |
23.6 |
0.3 |
1.8 |
1.9 |
10 |
1x1.25f |
37/0.21 |
1.5 |
14.6 |
0.3 |
2.1 |
2.2 |
14 |
The “f“ in the nominal size column indicates a flexile conductor with a fine wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
