Automotive Cable
Single-core cable
AV-V
Application:
AV-V Single-core cable is used in low voltage circuits in automobiles(Battery Cables).

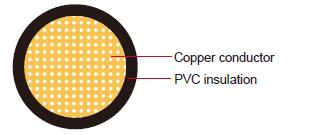

Construction:
Conductor: Annealed staranded copper
Insulation: Lead free PVC
Standard Compliance:
HMC ES 91110-05
Technical Parameters:
Operating temperature: –40 °C to +80 °C
Rated temperature: 80 °C
Rated voltage up to 60V
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x5 |
63/0.32 |
3.1 |
3.58 |
0.8 |
4.7 |
5.0 |
6.5 |
1x8 |
105/0.32 |
4.1 |
2.14 |
1.0 |
6.1 |
6.4 |
6.0 |
1x10 |
114/0.32 |
4.2 |
1.96 |
1.0 |
6.2 |
6.5 |
8.5 |
1x15 |
171/0.32 |
5.3 |
1.32 |
1.0 |
7.3 |
7.8 |
8.0 |
1x20 |
247/0.32 |
6.3 |
0.92 |
1.0 |
8.3 |
8.8 |
11 |
1x30 |
361/0.32 |
7.8 |
0.63 |
1.0 |
9.8 |
10.3 |
12 |
1x50 |
608/0.32 |
10.1 |
0.37 |
1.0 |
12.1 |
12.8 |
16.5 |
1x60 |
741/0.32 |
11.1 |
0.31 |
1.4 |
13.9 |
14.6 |
16 |
1x85 |
1064/0.32 |
13.1 |
0.21 |
1.4 |
15.9 |
16.6 |
24.5 |
1x100 |
369/0.32 |
15.1 |
0.17 |
1.4 |
17.9 |
18.8 |
23.5 |
*Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
